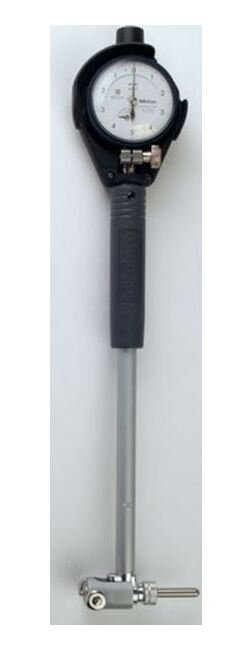

Mitutoyo Dial Bore Gage Set 10-16 inch - 511-736
Mitutoyo Dial Bore Gage Set 10-16 inch - 511-736
SKU:BOR-e25179
Precision Mitutoyo Dial Bore Gage Set for 10-16 inch range, interchangeable anvils, durable carbide ball contact point, high accuracy.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Mitutoyo Dial Bore Gage Set 10-16 inch - 511-736
$799.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Dial Bore Gage Set 10-16 inch - 511-736
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mitutoyo Dial Bore Gage Set 511-736 is a precision instrument designed for accurate internal diameter measurements ranging from 10.0 to 16.0 inches. With interchangeable anvils and necessary accessories, it ensures close tolerance I.D. measurements with exceptional reliability and durability. Featuring a carbide ball contact point and compatibility with optional extension rods and Digimatic Indicators, this gage set offers versatility and precision for industrial and institutional applications.
Product Specifications
Features Features
Interchangeable anvils and necessary accessories to perform close tolerance I.D. measurements.Carbide ball contact point for durability.Optional extension rods can be attached.A Digimatic Indicator can be attached in place of the dial gage.
Technical Specs Accuracy
0.0002 in
Technical Specs Brands
Mitutoyo
Technical Specs Digitalanalog
Analog
Technical Specs Graduation
0.0001 in | 0.0005 in
Technical Specs Indication Stability
0.00008 in
Technical Specs Measuring Depth
10 in
Technical Specs Number Of Anvils
5 in
Technical Specs Number Of Spacers
7
Technical Specs Probe Depth
10 in
Technical Specs Range
10.0 to 16.0 in
Technical Specs Stroke Of Contact Point
0.5 mm
