Mitutoyo Dial Bore Gage Set - 2.0 to 6.0 inches - 511-743
Mitutoyo Dial Bore Gage Set - 2.0 to 6.0 inches - 511-743
SKU:BOR-2d565f
Precision Mitutoyo Bore Gage Set for 2.0-6.0'' range. Interchangeable anvils, accurate & versatile for close-tolerance measurements.
Regular price
$695.00
Regular price
Sale price
$695.00
Unit price
per
Initiate Order
Mitutoyo Dial Bore Gage Set - 2.0 to 6.0 inches - 511-743
$695.00
Quantity: 1
Claim Your Seller Account
Mitutoyo Dial Bore Gage Set - 2.0 to 6.0 inches - 511-743
$695.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

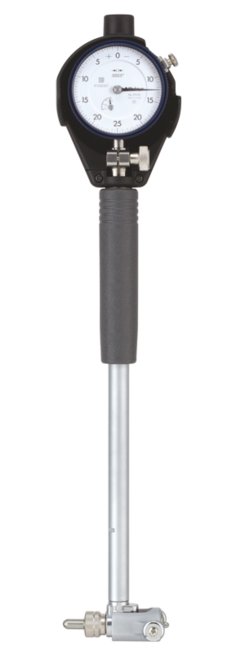

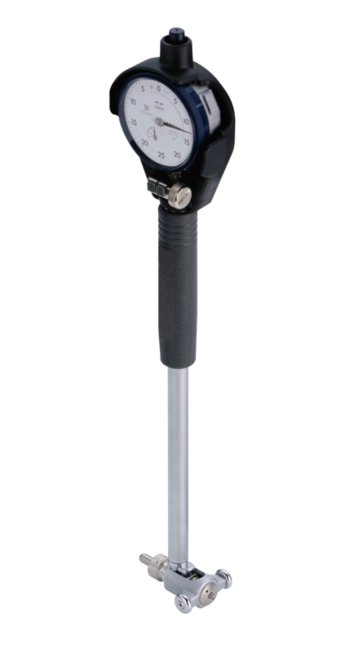

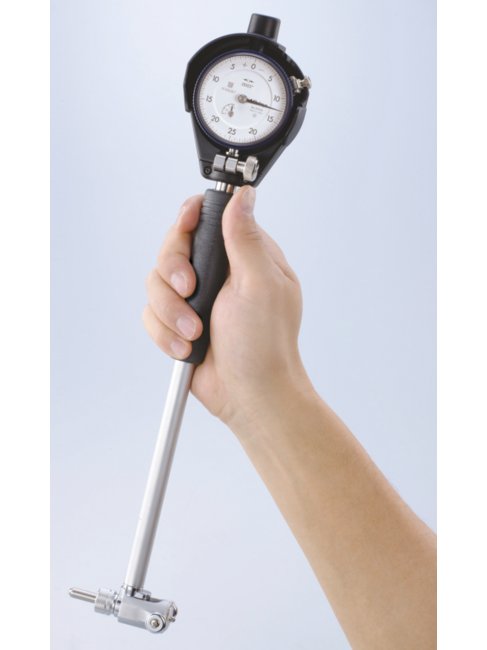

The Mitutoyo 511-743 Dial Bore Gage Set is a precision tool designed for accurate I.D. measurements in the range of 2.0 to 6.0 inches. Featuring interchangeable anvils, this set ensures close tolerance measurements. With a Carbide ball contact point for durability and option for attaching a Digimatic Indicator, it offers versatility for various applications. With an accuracy of 0.0002 inches and a probe depth of 6 inches, this gage set is a reliable choice for demanding quality control requirements.
Product Specifications
Features Features
Interchangeable anvils and necessary accessories to perform close tolerance I.D. measurements.Carbide ball contact point for durability.Optional extension rods can be attatched.A Digimatic Indicator can be attached in place of the dial gage.
Technical Specs Accuracy
0.0002 in
Technical Specs Brands
Mitutoyo
Technical Specs Graduation
0.0005 in
Technical Specs Indication Stability
0.00008 in
Technical Specs Number Of Anvils
11 in
Technical Specs Probe Depth
6 in
Technical Specs Range
2 to 6 in
