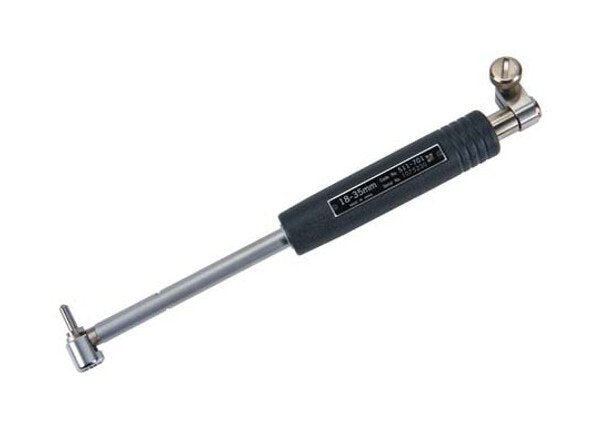

Mitutoyo Dial Bore Gage Set 511-701

Name: Mitutoyo Dial Bore Gage Set 511-701
Brand: Penn Tool Co.
SKU: BOR-faf168
Price: 499.99 USD
Availability: OutOfStock

SKU:BOR-faf168

Accurate Mitutoyo Dial Bore Gage Set for precise 18-35mm I.D. measurements, with interchangeable anvils and high durability.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Mitutoyo Dial Bore Gage Set 511-701 is a precision instrument designed for accurate internal diameter measurements ranging from 18 to 35 mm. It boasts a graduation of 0.0001 in, ensuring precise readings, and features a measuring depth of 10 in for versatile applications. With interchangeable anvils and accessories, a carbide ball contact point for durability, and the option to attach a Digimatic Indicator, this gage set is ideal for achieving close tolerance I.D. measurements. It meets strict industry standards for reliability and accuracy, making it a trusted choice for both consumer and institutional needs.

Product Specifications

Features Features

Interchangeable anvils and necessary accessories to perform close tolerance I.D. measurements.Carbide ball contact point for durability.Optional extension rods can be attached.A Digimatic Indicator can be attached in place of the dial gage.

Technical Specs Accuracy

0.0002 in

Technical Specs Brands

Mitutoyo

Technical Specs Digitalanalog

Analog

Technical Specs Graduation

0.0001 in | 0.0005 in

Technical Specs Indication Stability

0.00008 in

Technical Specs Measuring Depth

10 in

Technical Specs Number Of Anvils

9 in

Technical Specs Number Of Spacers

Technical Specs Range

18 to 35 mm

Technical Specs Stroke Of Contact Point

0.5 mm

Mitutoyo Dial Bore Gage Set 511-701
