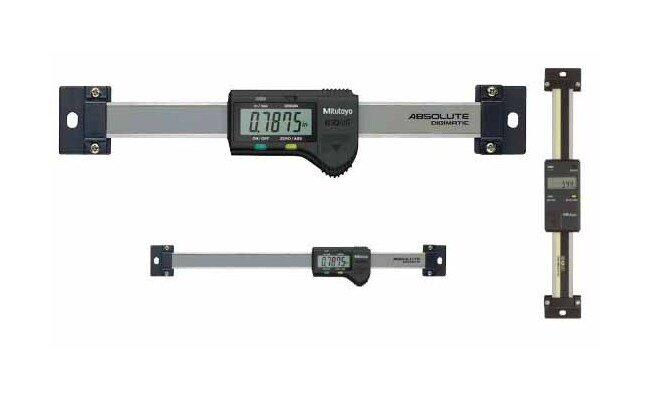

Mitutoyo Series 572 Absolute Digimatic Scale Unit
Mitutoyo Series 572 Absolute Digimatic Scale Unit
SKU:BEN-9a4f80
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Precision measurement with ABSOLUTE encoder, large LCD display, and versatile functions for consumer and institutional use.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit
$549.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mitutoyo Series 572 Absolute Digimatic Scale Unit offers precision measurement capabilities with its ABSOLUTE electrostatic capacitance type linear encoder. This scale unit features an ORIGIN key for setting an absolute zero point and a ZERO/ABS key for easy zero-setting at any position along the beam. With a range of 18 inches and a resolution of 0.0005 inches, it provides accurate measurements ideal for both consumer and institutional use. The large LCD display, long battery life, and multiple functions such as data output and inch/mm conversion make it a versatile and reliable tool for various applications.
Product Specifications
Technical Specs Accuracy
0.002 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
18 in | 450 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Horizontal
