Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
SKU:BEN-9fefa2
Experience precision and efficiency with the Mitutoyo Series 572 Absolute Digimatic Scale Unit - ideal for lathes and various measuring applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
$289.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

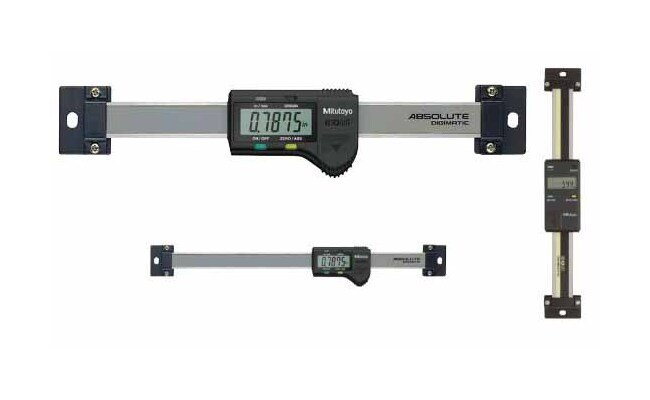

The Mitutoyo Series 572 Absolute Digimatic Scale Unit offers unparalleled precision and efficiency for both consumer and institutional use. Featuring an ORIGIN key for setting an absolute zero point, ABS Digimatic technology ensures accurate and consistent measurements every time. The ZERO/ABS key allows zero-setting at any slider position, while the large LCD display provides clear readings. With a stainless steel blade, this scale unit is durable and versatile, with horizontal or vertical mounting options. Ideal for lathes, this scale unit also includes a diameter displaying function for added convenience.
Product Specifications
Technical Specs Accuracy
0.001 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
4 in | 100 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Vertical
