Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
SKU:BEN-f3712e
The Mitutoyo Series 572 Absolute Digimatic Scale Unit offers precision measuring with ABSOLUTE electrostatic linear encoder technology and multi-function capabilities.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
$799.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Bench and Compact Scales
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

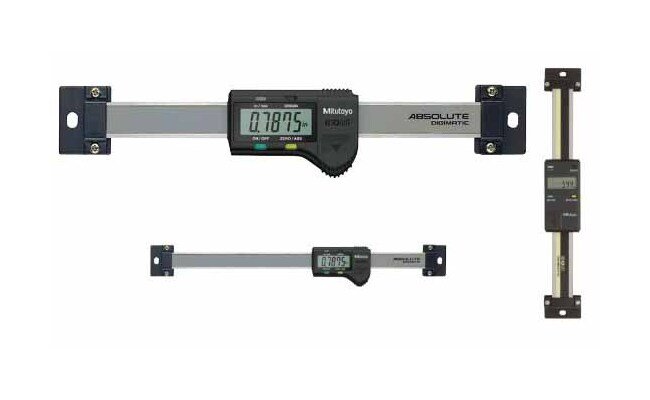

The Mitutoyo Series 572 Absolute Digimatic Scale Unit is a precision instrument designed for accurate measurements in both horizontal and vertical orientations. Featuring an ABSOLUTE electrostatic capacitance type linear encoder, this scale unit offers a resolution of 0.0005 inches or 0.01 millimeters with an impressive range of 0 to 24 inches or 0 to 600 millimeters. The large Liquid-Crystal Display (LCD) provides clear readings, while the Origin-set and Zero-setting functions ensure precise referencing. In addition, this unit is equipped with various multi-function capabilities, making it ideal for comparison measurements and data output. Embedded in a hardened stainless steel blade, the Digimatic Scale Unit is durable and reliable for industrial applications, meeting the highest standards of accuracy and performance.
Product Specifications
Technical Specs Accuracy
0.002 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
0 to 24 in | 0 to 600 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Vertical
