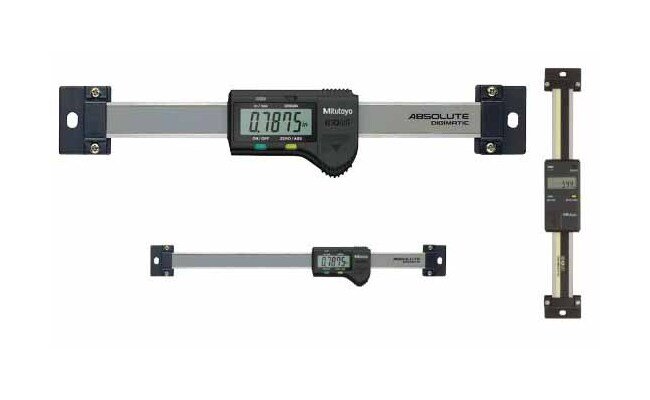

Mitutoyo Series 572 Absolute Digimatic Scale Unit - Horizontal Face
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Horizontal Face
SKU:BEN-0630cb
Precise Mitutoyo Scale Unit for accurate measurements in institutional settings. ABS Digimatic system, large LCD display, and versatile functions.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Horizontal Face
$599.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Horizontal Face
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mitutoyo Series 572 Absolute Digimatic Scale Unit offers precise measurements with an ABS Digimatic system. Its versatile functionality includes setting absolute zero points for reference, incremental comparison measurements, and a large LCD display. With a range of 0 to 40 inches and exceptional accuracy of 0.0025 inches, this unit is ideal for institutional and government applications. Advanced features like data output, inch/mm conversion, and low voltage alarm ensure seamless integration with various procurement standards.
Product Specifications
Technical Specs Accuracy
0.0025 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
0 to 40 in | 0 to 1000 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Horizontal
