Mitutoyo Series 572 Absolute Digimatic Scale Unit - Vertical Display
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Vertical Display
SKU:BEN-37b2ad
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Precise and Durable for Institutional Use
Regular price
$385.00
Regular price
Sale price
$385.00
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Vertical Display
$385.00
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit - Vertical Display
$385.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

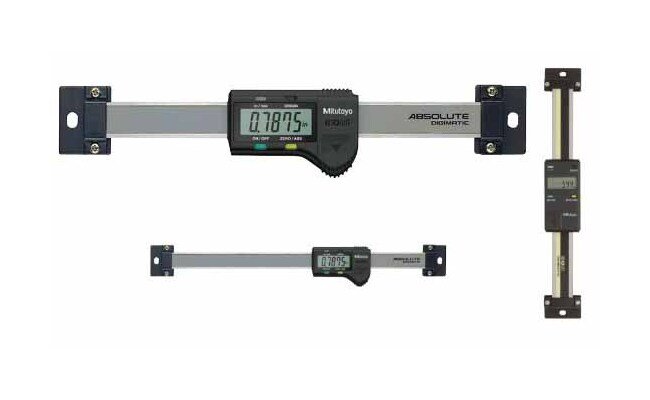

The Mitutoyo Series 572 Absolute Digimatic Scale Unit features advanced technology for precise measurements. With the ORIGIN key, setting the absolute zero point becomes seamless, ensuring accurate reference in subsequent measurements. The ZERO/ABS key allows zero-setting at any slider position along the beam, facilitating incremental comparison measurements. Embedded in a hardened stainless steel blade, this unit offers durability without the need for a rack, pinion, or glass scale. Ideal for lathes, the special type provides diameter displaying function. With a large LCD display, ABSOLUTE electrostatic capacitance type linear encoder, and multiple functions, this scale unit guarantees reliability and efficiency in institutional settings.
Product Specifications
Technical Specs Accuracy
0.002 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
0 to 12 in | 0 to 300 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Vertical
