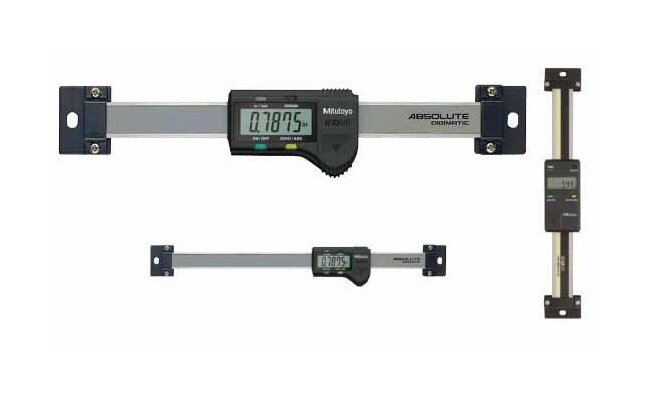

Mitutoyo Series 572 Absolute Digimatic Scale Unit with Origin Setting
Mitutoyo Series 572 Absolute Digimatic Scale Unit with Origin Setting
SKU:BEN-24511d
Experience precision with the Mitutoyo Series 572 Absolute Digimatic Scale Unit for accurate measurements in various applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Mitutoyo Series 572 Absolute Digimatic Scale Unit with Origin Setting
$289.99
Quantity: 1
Claim Your Seller Account
Mitutoyo Series 572 Absolute Digimatic Scale Unit with Origin Setting
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mitutoyo Series 572 Absolute Digimatic Scale Unit sets a new standard in precision measurement. Unlike standard models, this scale unit features an ORIGIN key for establishing an absolute zero point, ensuring accurate reference in all measurements. With the ZERO/ABS key, users can zero-set the display at any slider position along the beam for incremental comparisons. Crafted with hardened stainless steel and an embedded Digimatic Scale, this unit guarantees durability and reliability. Suitable for both horizontal and vertical mounting, it also offers a special type with a diameter displaying function, ideal for lathe applications.
Product Specifications
Technical Specs Accuracy
0.001 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
0 to 8 in | 0 to 200 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Vertical
