MK Magnetics 0.0007in C-Core
MK Magnetics 0.0007in C-Core
SKU:CCO-daaf1b
High-performance nanocrystalline C-Core with 0.0007in typical thickness, customizable to meet precise requirements.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
MK Magnetics 0.0007in C-Core
$49.99
Quantity: 1
Claim Your Seller Account
MK Magnetics 0.0007in C-Core
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

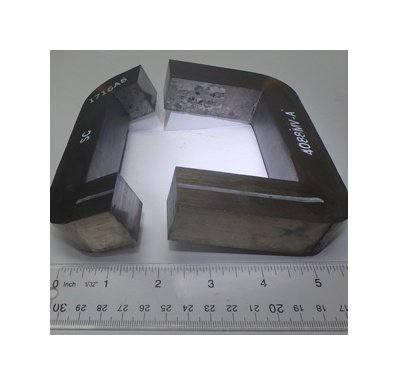

The MK Magnetics 0.0007in C-Core is a high-performance nanocrystalline core with a typical thickness of 0.0007 inches, designed to meet the most demanding magnetic performance requirements. With a maximum power loss of 5.5 Watts/lb and test frequency of 20,000 Hz, this core is customizable to meet specific dimensional and physical needs. It features tight tolerances, low noise applications, special heat stabilization processes, and epoxy coating for enhanced durability. Whether for standard or custom applications, this C-Core exceeds industry standards and is ideal for institutions seeking reliable magnetic solutions.
Product Specifications
Additional Information Additional Information

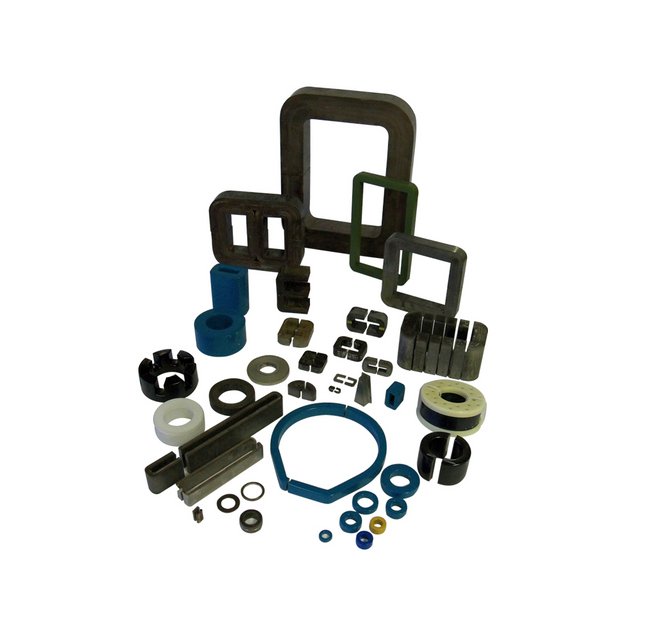

MK Magnetics will gladly manufacture cores to your specific dimensional and physical requirements such as: non-standard mechanical tolerances, multiple cuts, or diamond lapped for lowest possible excitation and/or acoustical noise.

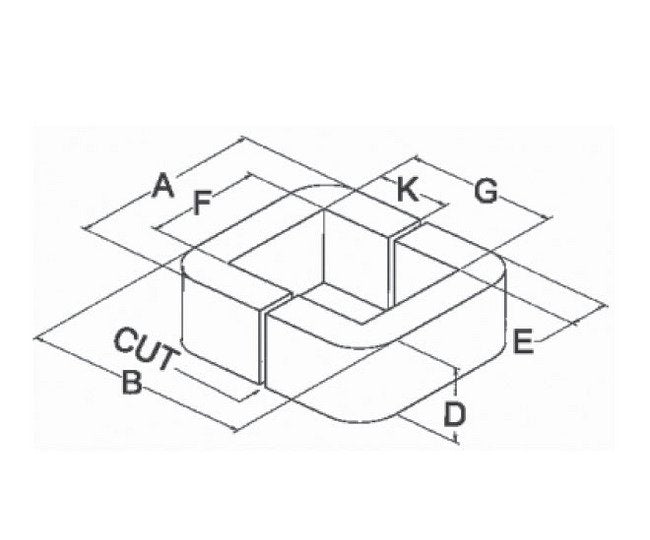

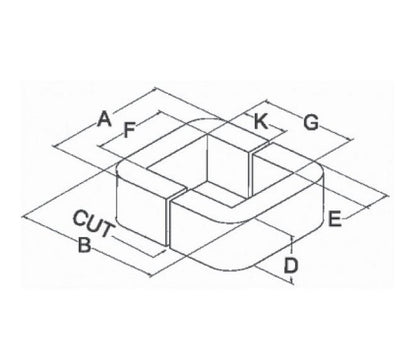

Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 A
0.031 in. When Outside Core Height (B) < 3.500 in. | 0.062 in. When Outside Core Height (B) ⥠3.500 in.
Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 N
A and B dimensions are held to a maximum tolerance only, negative tolerances are controlled by the F, G, and E dimensions. F and G dimensions are held to a minimum tolerance only, positive tolerances are controlled by the A, B and E dimensions.
Features Features

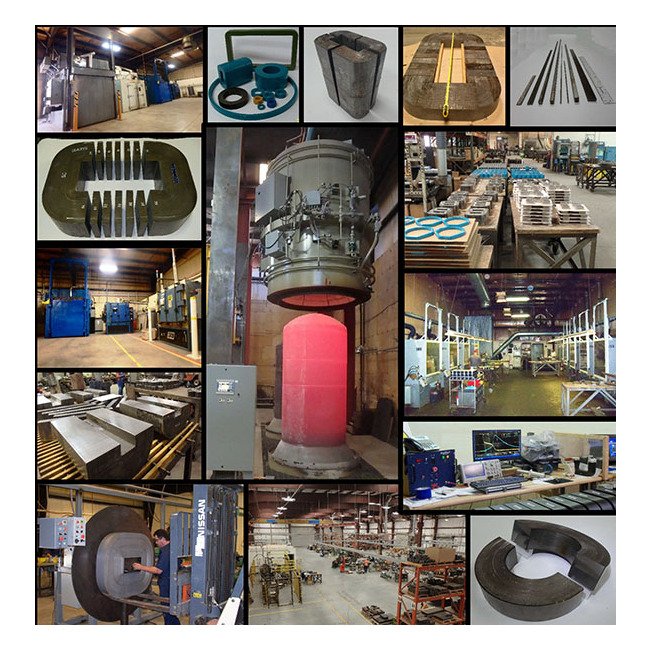

Customizable to Meet your NeedsCustom SizesCustom ShapesMultiple CutsSpecial Air Gap CutsTighter TolerancesLow Noise ApplicationsDiamond-Lapped Mating SurfacesSpecial High Temperature Heat Stabilization ProcessesSpecial Edge ChamferingEpoxy CoatingSpecial Stack Resistance RequirementsSpecial Part MarkingCustom AssembliesCustom Grinding and MachiningSmall Planar-Type Geometries
Note Note
B (kG) is flux density in kilogauss. Watts/lb and VA/lb are power loss and excitation VA when measured at the indicated flux (B) and frequency (Hz) under sine wave excitation. Gap VA for a 0.001" total air gap was calculated using the following formula: Gap VA = 4.1 à 10-4 à B2 à frequency (Hz) à SF2 à Ag. Cores under 25 lbs use 0.001" air gap and those in excess of 25 lbs use 0.002" air gap. Total core watts = material watts/lb à core wgt in lbs. Total core excitation VA = material VA/lb à core wgt in lbs + gap VA.Odd or small core geometry may impact performance.Call for more details about these and other possibilities.
Specifications Core Type
C
Specifications Loop Type
Transverse Loop Anneal
Magnetic Performance Guide Industry Standards
EIA Standard RS-217
Magnetic Performance Guide Material
Nanocrystalline: Prime "M" 0.0007 in., Grade "MB" Domestically Produced Finemet FT3-W at 5.6 in. width. Standard Round Loop Anneal, Square and Transverse Available.
Magnetic Performance Guide Material Description
Nanocrystalline FT3-W
Magnetic Performance Guide Maximum Power Loss
5.5 Watts/lb
Magnetic Performance Guide Minimum Space Factor
0.78 in
Magnetic Performance Guide Test Flux Density B
2.0 kg
Magnetic Performance Guide Test Frequency
20,000 Hz
Magnetic Performance Guide Thickness
0.0007 in
