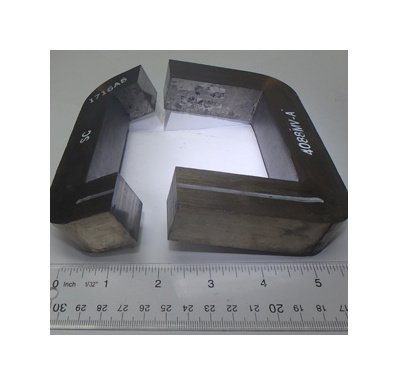

MK Magnetics 0.009 in. C-Core

MK Magnetics 0.009 in. C-Core

CCO-f9119b

High-performance MK Magnetics 0.009 in. C-Core for precision applications, customizable with tight tolerances and low noise design.

$29.99
$29.99
Sale

Initiate Order

MK Magnetics 0.009 in. C-Core

MK Magnetics 0.009 in. C-Core

$29.99

Quantity: 1

Claim Your Seller Account

MK Magnetics 0.009 in. C-Core

MK Magnetics 0.009 in. C-Core

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MK Magnetics 0.009 inch C-Core offers exceptional magnetic performance with its Z-Type, High Flux Grade, 3% Grain-Oriented Silicon Steel material, ideal for low noise applications. Customizable to meet specific needs, this core features tight tolerances, special heat stabilization processes, and epoxy coating. With compliance to EIA Standard RS-217, it ensures precision and reliability for institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information

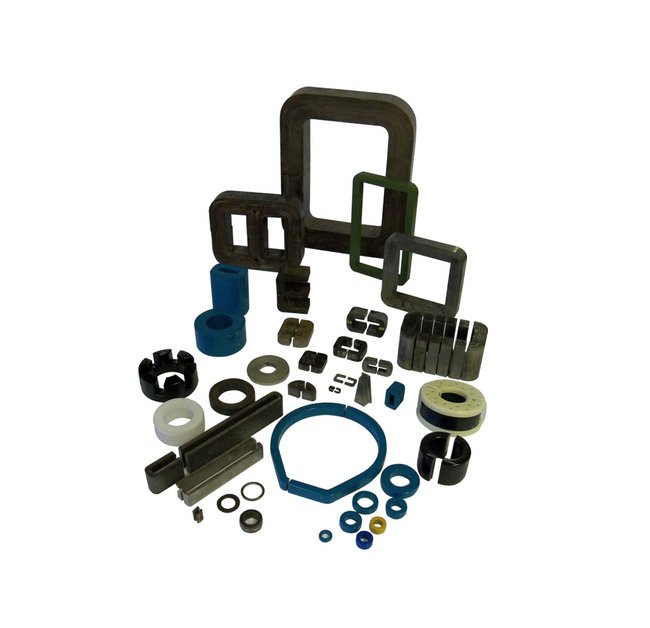

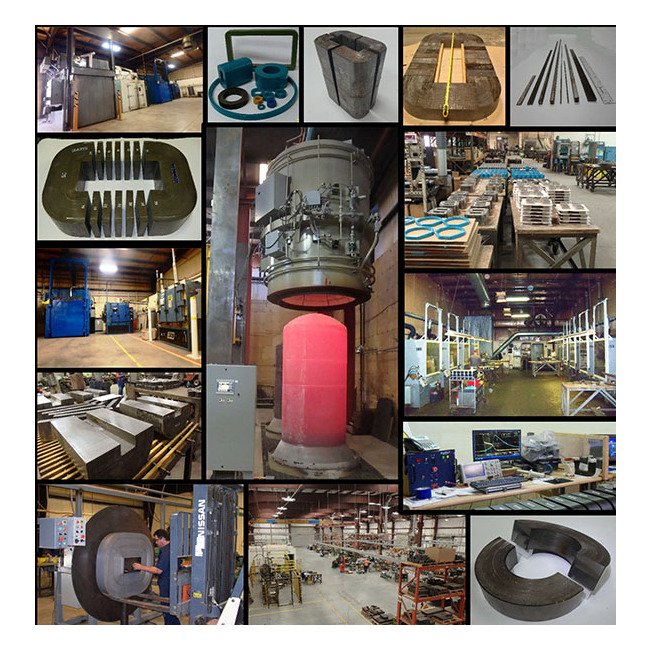

MK Magnetics will gladly manufacture cores to your specific dimensional and physical requirements such as: non-standard mechanical tolerances, multiple cuts, or diamond lapped for lowest possible excitation and/or acoustical noise.

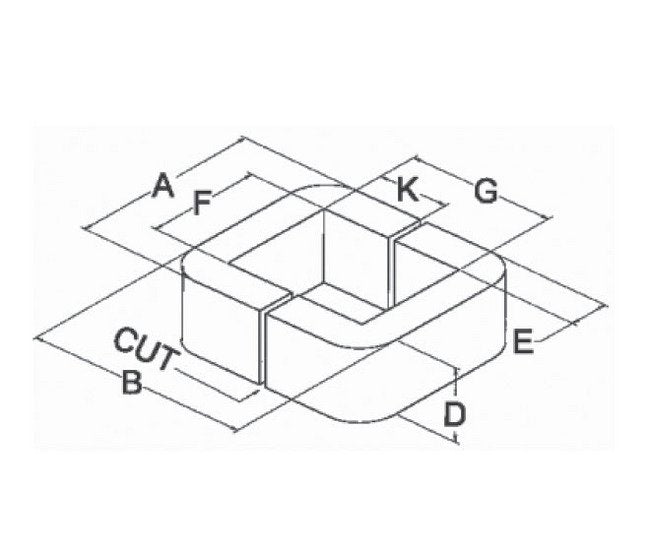

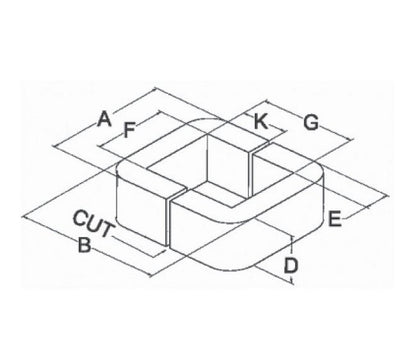

Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 A
0.031 in. When Outside Core Height (B) < 3.500 in. | 0.062 in. When Outside Core Height (B) ≥ 3.500 in.
Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 N
A and B dimensions are held to a maximum tolerance only, negative tolerances are controlled by the F, G, and E dimensions. F and G dimensions are held to a minimum tolerance only, positive tolerances are controlled by the A, B and E dimensions.
Features Features
Customizable to Meet your NeedsCustom SizesCustom ShapesMultiple CutsSpecial Air Gap CutsTighter TolerancesLow Noise ApplicationsDiamond-Lapped Mating SurfacesSpecial High Temperature Heat Stabilization ProcessesSpecial Edge ChamferingEpoxy CoatingSpecial Stack Resistance RequirementsSpecial Part MarkingCustom AssembliesCustom Grinding and MachiningSmall Planar-Type Geometries
Note Note
B (kG) is flux density in kilogauss. Watts/lb and VA/lb are power loss and excitation VA when measured at the indicated flux (B) and frequency (Hz) under sine wave excitation. Gap VA for a 0.001" total air gap was calculated using the following formula: Gap VA = 4.1 × 10-4 × B2 × frequency (Hz) × SF2 × Ag. Cores under 25 lbs use 0.001" air gap and those in excess of 25 lbs use 0.002" air gap. Total core watts = material watts/lb × core wgt in lbs. Total core excitation VA = material VA/lb × core wgt in lbs + gap VA.Odd or small core geometry may impact performance.Call for more details about these and other possibilities.
Specifications Core Type
C
Magnetic Performance Guide Industry Standards
EIA Standard RS-217
Magnetic Performance Guide Material
Z-Type, High Flux Grade, 3 % Grain-Oriented Silicon Steel, 0.009 in. and Domain Refined-H Hi-B.
Magnetic Performance Guide Material Description
3 % Silicon Steel Silectron®
Magnetic Performance Guide Maximum Excitation
1.5 VA/lb
Magnetic Performance Guide Maximum Power Loss
0.89 Watts/lb
Magnetic Performance Guide Maximum Total Air Gap At 0001
6.9 VA/in²
Magnetic Performance Guide Minimum Space Factor
0.95 in
Magnetic Performance Guide Note For Material
Silectron® is a registered trademark of Allegheny Ludlum Steel Corp.
Magnetic Performance Guide Test Flux Density B
17.6 kg
Magnetic Performance Guide Test Frequency
60 Hz
Magnetic Performance Guide Thickness
0.009 in
