MK Magnetics C-Core - 0.004 in. Thickness
MK Magnetics C-Core - 0.004 in. Thickness
SKU:CCO-afe136
Customizable 0.004 in. C-Core for precise applications with low noise. Meets EIA Standard RS-217.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
MK Magnetics C-Core - 0.004 in. Thickness
$29.99
Quantity: 1
Claim Your Seller Account
MK Magnetics C-Core - 0.004 in. Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

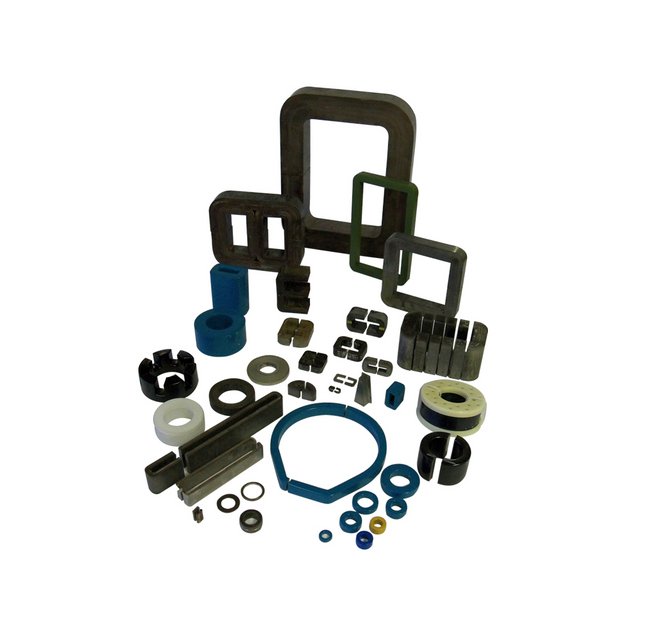

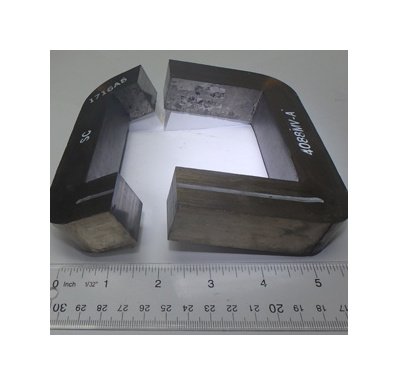

The MK Magnetics C-Core, with a typical thickness of 0.004 inches, offers superior magnetic performance utilizing Z-Type, High Flux Grade, 3% Grain-Oriented Silicon Steel. Customizable to meet a wide range of dimensional and physical requirements, including special heat stabilization processes, edge chamfering, and epoxy coating, this C-Core is ideal for low-noise applications, with tight tolerances meeting EIA Standard RS-217. Enhance your projects with reliability and precision with MK Magnetics C-Core.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
MK Magnetics will gladly manufacture cores to your specific dimensional and physical requirements such as: non-standard mechanical tolerances, multiple cuts, or diamond lapped for lowest possible excitation and/or acoustical noise.

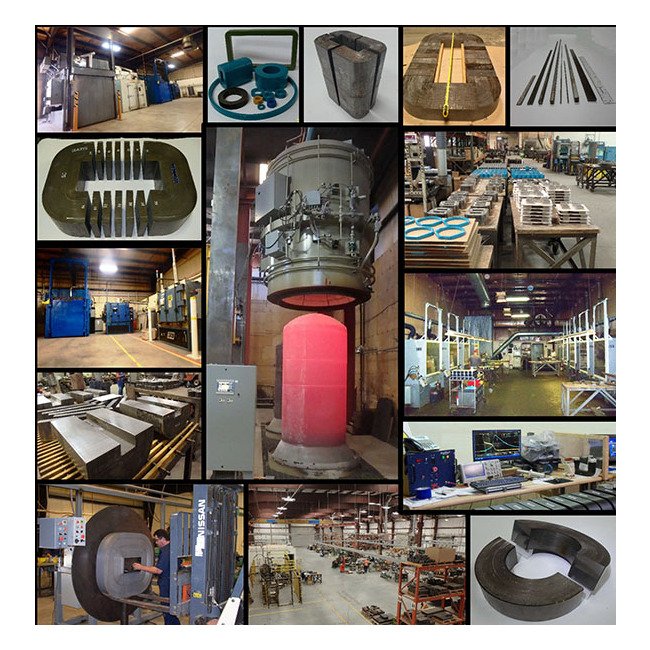

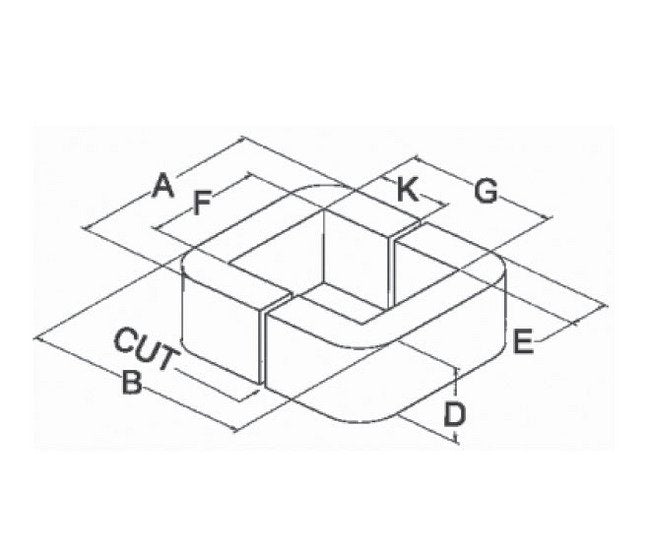

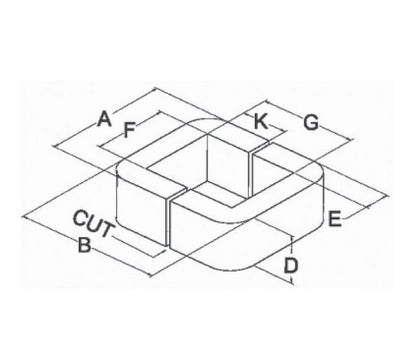

Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 A
0.031 in. When Outside Core Height (B) < 3.500 in. | 0.062 in. When Outside Core Height (B) ⥠3.500 in.
Dimensional Tolerances For Cut C Cores Per Eia Standard Rs 217 N
A and B dimensions are held to a maximum tolerance only, negative tolerances are controlled by the F, G, and E dimensions. F and G dimensions are held to a minimum tolerance only, positive tolerances are controlled by the A, B and E dimensions.
Features Features
Customizable to Meet your NeedsCustom SizesCustom ShapesMultiple CutsSpecial Air Gap CutsTighter TolerancesLow Noise ApplicationsDiamond-Lapped Mating SurfacesSpecial High Temperature Heat Stabilization ProcessesSpecial Edge ChamferingEpoxy CoatingSpecial Stack Resistance RequirementsSpecial Part MarkingCustom AssembliesCustom Grinding and MachiningSmall Planar-Type Geometries
Note Note
B (kG) is flux density in kilogauss. Watts/lb and VA/lb are power loss and excitation VA when measured at the indicated flux (B) and frequency (Hz) under sine wave excitation. Gap VA for a 0.001" total air gap was calculated using the following formula: Gap VA = 4.1 à 10-4 à B2 à frequency (Hz) à SF2 à Ag. Cores under 25 lbs use 0.001" air gap and those in excess of 25 lbs use 0.002" air gap. Total core watts = material watts/lb à core wgt in lbs. Total core excitation VA = material VA/lb à core wgt in lbs + gap VA.Odd or small core geometry may impact performance.Call for more details about these and other possibilities.
Specifications Core Type
C
Magnetic Performance Guide Industry Standards
EIA Standard RS-217
Magnetic Performance Guide Material
Z-Type, High Flux Grade, 3 % Grain-Oriented Silicon Steel, 0.004 in. Domain Refined-H Hi-B.
Magnetic Performance Guide Material Description
3 % Silicon Steel Silectron®
Magnetic Performance Guide Maximum Excitation
39.5 VA/lb
Magnetic Performance Guide Maximum Power Loss
15.0 Watts/lb
Magnetic Performance Guide Maximum Total Air Gap At 0001
41.1 VA/in²
Magnetic Performance Guide Minimum Space Factor
0.90 in
Magnetic Performance Guide Note For Material
Silectron® is a registered trademark of Allegheny Ludlum Steel Corp.
Magnetic Performance Guide Test Flux Density B
17.6 kg
Magnetic Performance Guide Test Frequency
400 Hz
Magnetic Performance Guide Thickness
0.004 in
