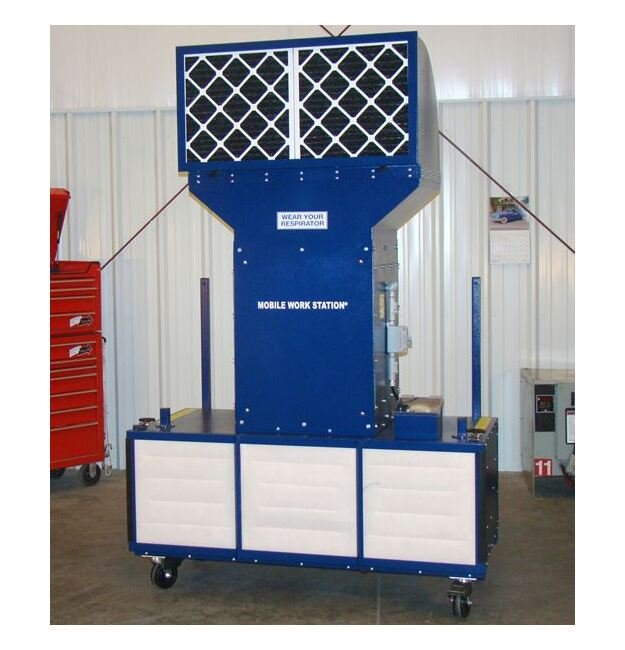

Mobile Filtration Booth - Model 5400A
Mobile Filtration Booth - Model 5400A
SKU:POR-7fbafc
Portable, certified filtration booth for versatile industrial use with adjustable filter racks and durable construction.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Mobile Filtration Booth - Model 5400A
$7,999.99
Quantity: 1
Claim Your Seller Account
Mobile Filtration Booth - Model 5400A
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mobile Filtration Booth - Model 5400A is a versatile and portable solution for creating a clean and enclosed workspace in various industrial settings. Certified EPA 6H compliant and NFPA-701 rated, this booth offers adjustable filter racks that can be customized for different filtration needs, making it ideal for paint spray application, fume collection, welding fume extraction, and more. With efficient multi-stage filtration, safety features like hazardous location components, and durable construction using 14 gauge powder-coated steel, this booth ensures performance, reliability, and safety in operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Durable Construction 0
Manufactured using 14 gauge powder coated steel for long lasting durability and performance.
Efficient Filtration 0
Uses standard sized 20" x 20" filters, which are easy to replace. The standard filter set included for its multi-stage filtration system has two sets particulate filters and two sets carbon filters for the removal of odors and VOC's. In addition, there is a magnehelic gauge to monitor filter efficiency.
Low Maintenance 0
There are no bearings to grease or belts to change with its sealed direct drive motor.
Options 0
Units can be ordered with optional Light System; Air Monitoring, Shut-Off, and Alarm System; or with a fire suppression system.
Portable Enclosure 0
The mobile enclosure is attached to and supported by the filtration unit. The side and front curtains are on track, which allows the 10' x 10' x 10'' enclosure to moved anywhere in the shop. The curtains are clear to take advantage of available ambient light, and are made from 20 MIL fire retardant material which meets NFPA-701. This unit has the added advantages of a larger curtained area than our standard models with heavier gauge enclosure supports, an extended exhaust assembly (2' higher), and caster support extensions for increased stability. The caster supports extend approximately 42" in front of the unit.
Safety 0
Hazardous location motor, hazardous location controls, aluminum fan wheel and aluminum inlet cone.
Savings 0
The recirculation design eliminates the need for ventilation modifications or make-up air systems, and reduces energy costs by utilizing existing heated or cooled air. The backward curved non-overloading fan wheel is constructed with hollow airfoil blades. The fan wheels are statically and dynamically balanced to provide higher airflow performance at less horsepower, and with minimum air noise.
Specifications Certification
EPA 6H compliant | NFPA-701
Specifications Enclosure Dimensions
120 x 120 x 121 in
Specifications Equipment Dimensions
61 x 32 x 120 in
Specifications Filter Size
20 x 20 in
Specifications Power Rating
1 1/2 hp
Specifications Power Requirement Frequency
60 Hz
Specifications Power Requirement Phase
Single
Specifications Power Requirement Voltage
115 V | 230 V
