Mobile Weld Station Filtration System
Mobile Weld Station Filtration System
SKU:MOB-a34df7
Enhance productivity and safety with the Mobile Weld Station Filtration System. Portable, efficient welding fume extraction for healthier workspaces.
Regular price
$5,699.00
Regular price
Sale price
$5,699.00
Unit price
per
Initiate Order
Mobile Weld Station Filtration System
$5,699.00
Quantity: 1
Claim Your Seller Account
Mobile Weld Station Filtration System
$5,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

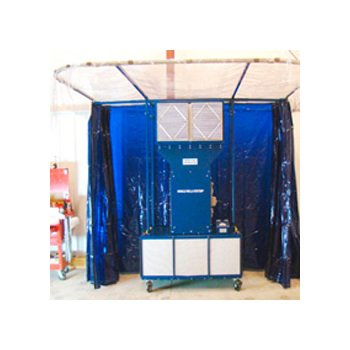

The Mobile Weld Station Filtration System is a cutting-edge solution for welding fume extraction. Equipped with a multi-stage filtration system and patented recirculation design, it effectively removes particulates and VOCs, enhancing productivity and promoting a healthier work environment. This fully portable station eliminates the need to relocate work for ventilation, ensuring operational efficiency. Crafted for performance, reliability, and safety, it features a durable 14-gauge powder-coated steel construction for long-lasting use.
Product Specifications
Durable Construction 0
Manufactured using 14 gauge powder coated steel for long lasting durability and performance.
Efficient Filtration 0
Uses standard sized 20" x 20" filters, which are easy to replace. The custom combination of filters is designed for the capture and removal of compounds specific to welding fumes, and includes high efficiency particulate filters and granular activated carbon and potassium permanganate filters. Also includes aluminum mesh spark arrestor filters which help to reflect and capture hot sparks. The spark arrestor filters can be washed and reused. In addition, there is a magnehelic gauge to monitor filter efficiency.
Low Maintenance 0
There are no bearings to grease or belts to change with its sealed direct drive motor.
Portable Uv Protective Enclosure 0
The UV protective welding curtain enclosure is attached to and supported by the filtration unit. The side and front curtains are on track, which allows the 10' x 8' enclosure to moved anywhere in the shop with only 3' of aisle space. The top curtain is clear to take advantage of available ambient light. All side curtains are made from 14 MIL flame retardant UV protective material that is oil, water, & mildew resistant and designed for grinding, sparking, dust/splash/spray confinement for welding enclosures.
Safety 0
Hazardous location motor, hazardous location controls, aluminum fan wheel and aluminum inlet cone.
Savings 0
The recirculation design eliminates the need for ventilation modifications or make-up air systems, and reduces energy costs by utilizing existing heated or cooled air. The backward curved non-overloading fan wheel is constructed with hollow airfoil blades. The fan wheels are statically and dynamically balanced to provide higher airflow performance at less horsepower, and with minimum air noise.
Specifications Enclosure Dimensions
120 x 96 x 96 in
Specifications Equipment Dimensions
61 x 32 x 94 1/2 in
Specifications Filter Size
20 x 20 in
Specifications Power Rating
1 1/2 hp
Specifications Power Requirement Frequency
60 Hz
Specifications Power Requirement Phase
Single
Specifications Power Requirement Voltage
115 V | 230 V
