Model 103 Square Gear Ratcheting Crank Wrench - 17mm
Model 103 Square Gear Ratcheting Crank Wrench - 17mm
SKU:RAT-7e2689
Efficient and durable Model 103 Square Gear Ratcheting Crank Wrench with 17mm opening, reversible control, and bolt-through design for precise machinery adjustments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 103 Square Gear Ratcheting Crank Wrench - 17mm
$49.99
Quantity: 1
Claim Your Seller Account
Model 103 Square Gear Ratcheting Crank Wrench - 17mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

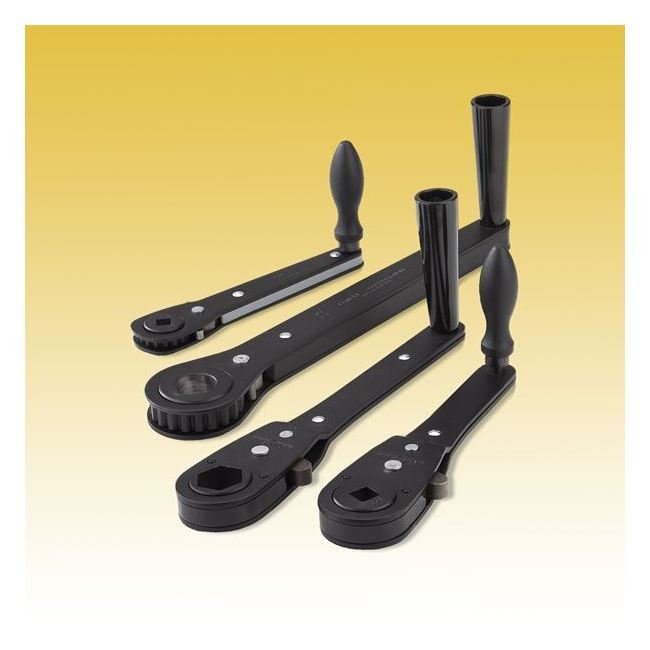

The Model 103 Square Gear Ratcheting Crank Wrench is a versatile tool designed for precise machinery adjustments in various applications. Featuring a durable steel handle with a revolving design, this wrench ensures ease of use and longevity. With a 17mm square gear opening and 20 teeth, it provides efficient torque transmission and secure fastening. The reversible action control adds convenience, while the bolt-through design allows for nuts to be secured at any threaded length. Made in the USA, this wrench meets the highest quality standards for performance and reliability.
Product Specifications

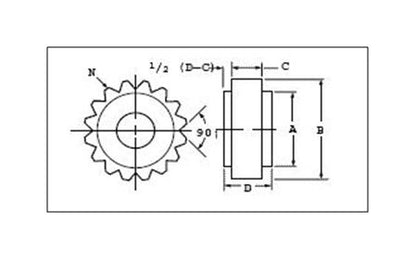

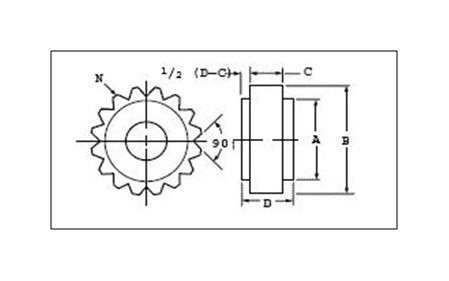

Specifications Gear Dimension A
1.840 in | 46.7 mm
Specifications Gear Dimension B
2.329 in | 59.2 mm
Specifications Gear Dimension C
.504 in | 12.8 mm
Specifications Gear Dimension D
.885 in | 22.5 mm
Specifications Gear Opening Shape
Square
Specifications Gear Opening Size
17 mm
Specifications Gear Part Number
M9617
Specifications Handle Nominal Length A
12 in | 305 mm
Specifications Handle Part Number
829L1
Specifications Model
103
Specifications Number Of Teeth
20
Specifications Weight
2 1/4 lb | 1.02 kg

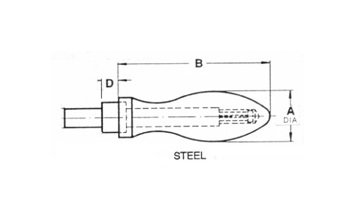

Specifications Wrench Handle Dimension A
1 3/2 in | 27.8 mm
Specifications Wrench Handle Dimension B
3 11/32 in | 84.9 mm
Specifications Wrench Handle Dimension D
5/16 in | 7.9 mm
Specifications Wrench Handle Length
Long (103)
Specifications Wrench Handle Material
Steel
Specifications Wrench Handle Type
Revolving
