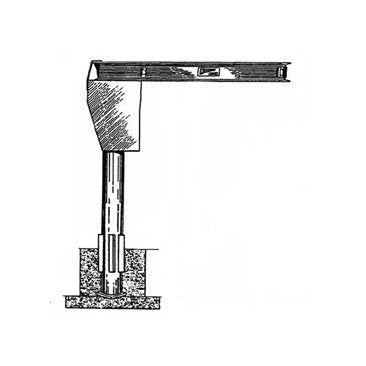

Model 200 CIM Concrete Insert Jib Crane
Model 200 CIM Concrete Insert Jib Crane
SKU:REL-cd70c7
Reliable Model 200 CIM Jib Crane for safe and efficient material handling. Meets A.I.S.C. Specifications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Model 200 CIM Concrete Insert Mount Jib Crane is engineered for standard duty applications, offering a reliable solution for material loading, handling, and transfer. With a 10000 lbs. capacity and structurally designed to meet or exceed A.I.S.C. Specifications, this crane ensures safe and efficient hoist travel. The precision upper head and lower roller bearings provide durability, while the adjustable bottom roller assembly allows for easy boom leveling. Perfect for heavy-duty use, this crane meets industry standards for quality and performance.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

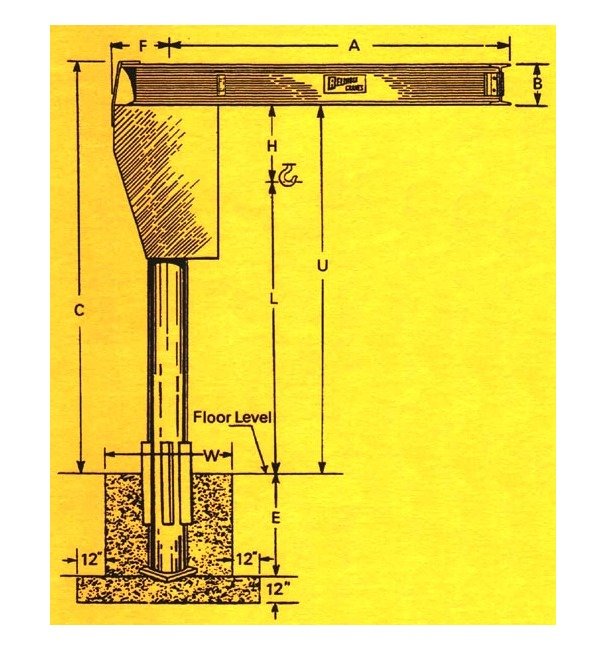

Specifications Boom Size B
20 inches
Specifications Capacity
10000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
9'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3975 lbs.
