Model 2330 Dual Cylinder Mechanical Scale
Model 2330 Dual Cylinder Mechanical Scale
SKU:150-619205
Model 2330 Mechanical Dual Cylinder Scale - Ideal for two gas cylinders up to 12'' in diameter. Corrosion-resistant, accurate, and durable. Made in the USA.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Model 2330 Dual Cylinder Mechanical Scale
$589.99
Quantity: 1
Claim Your Seller Account
Model 2330 Dual Cylinder Mechanical Scale
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

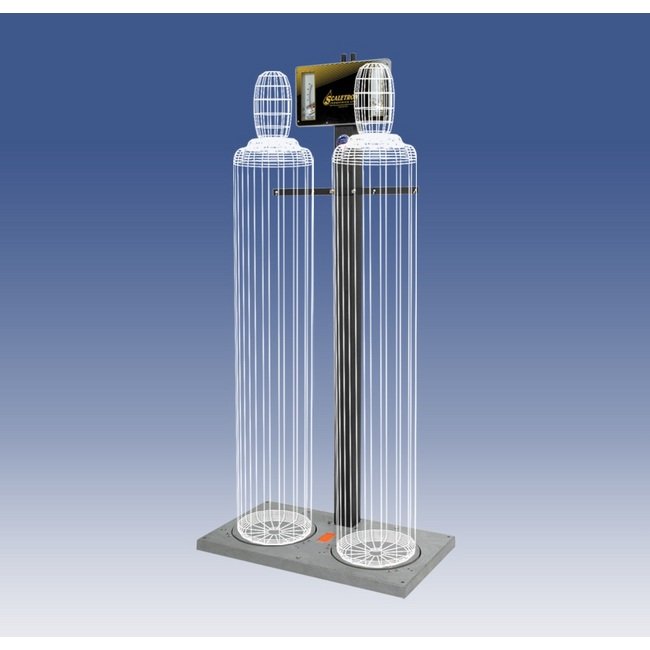

The Model 2330 Mechanical Dual Cylinder Scale by Scaletron™ is a reliable solution for weighing two gas cylinders of up to 12'' in diameter. With a sturdy and corrosion-resistant design, this scale features a low-profile base for safe handling, spring dial displays, and stainless steel hardware for durability in harsh environments. Designed for maximum accuracy, it offers ±1% accuracy of capacity, making it ideal for measuring various liquid gases like ammonia, carbon dioxide, and sulfur dioxide. Made in the USA, it comes with a 5-year full warranty, ensuring long-lasting performance in government institutions and industrial settings.
Product Specifications
Additional Information Additional Information
Designed for weighing cylinders up to 12" in diameterTwo independent weighing disks and dialsHigh accuracy of ±1% of capacityMechanical spring and lever movementPatented
Chemicals Chemicals
Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases.
Indicator Options Indicator Options
Dials available in pounds or kilograms.
Note Note
Made in USA.

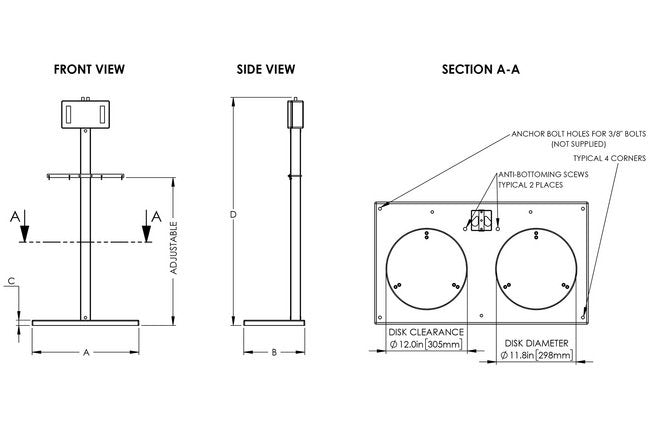

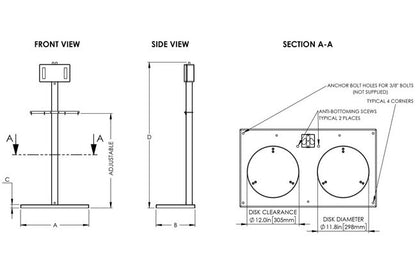

Scale Base Dimension D
67.2 in | 1707 mm
Scale Base Platform Height C
1.50 in | 38 mm
Scale Base Platform Length A
31.5 in | 800 mm
Scale Base Platform Width B
18.00 in | 457 mm
Scale Base Weight
58 lb
Specifications Accuracy
1 %
Specifications Base Length
32 in
Specifications Base Width
18 in
Specifications Diameter
Up to 12 in
Specifications Net Capacity
0 to 150 lb | 70 kg
Specifications Warranty
5 Years Full Warranty on All Scale Products
Specifications Weighing Properties Readout
Kilograms (kg) | Pounds (lb)
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder coated finish, with molded fiberglass reinforced thermoplastic base and weighing disks for use in harsh environmentsLow profile platform design (1-1/2") increases safety and ease of cylinder handlingSpring dial displays, one per each cylinder housed in molded fiberglass reinforced thermoplastic enclosure to provide protection from acidsAll hardware is stainless steel to prevent corrosionSelf-locking tare adjustment knobCylinder support and chains
