Model 2350 Digital Dual Cylinder Weighing Scales
Model 2350 Digital Dual Cylinder Weighing Scales
SKU:150-326a8c
Accurate and durable digital dual cylinder scales for safe handling of gas cylinders in corrosive environments.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Model 2350 Digital Dual Cylinder Weighing Scales
$1,699.99
Quantity: 1
Claim Your Seller Account
Model 2350 Digital Dual Cylinder Weighing Scales
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

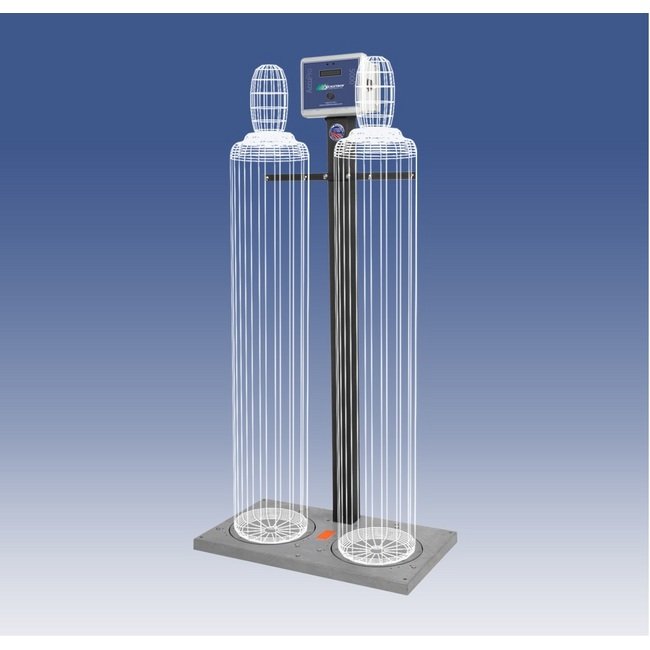

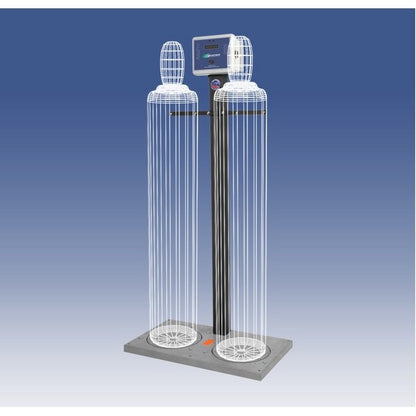

The Model 2350 Digital Dual Cylinder Scales from Scaletron are designed to set the standard in corrosion resistance, making them the ideal weighing solution for applications requiring frequent on/off loading of gas cylinders. This scale can weigh two gas cylinders up to 12" in diameter with a low-profile base for safe and easy handling. With rugged steel construction, corrosion-resistant finish, and advanced features like six stainless steel load cells and an electronic indicator housed in a NEMA 4X enclosure, these scales ensure accuracy and durability in harsh environments. The AccuPro 5000 Digital Controller provides precise readings and multiple output signal options for effective monitoring and control.
Product Specifications
Additional Information Additional Information
Designed for weighing cylinders up to 12" in diameterTwo independent weighing disksHigh accuracy of ±0.1 % of capacityAccuPro 5000 dual channel controller with easy readability to 0.1 lb. (kg)Patented
Available Controllers Available Controllers
AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal - scale or loop powered.
Chemicals Chemicals
Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases.

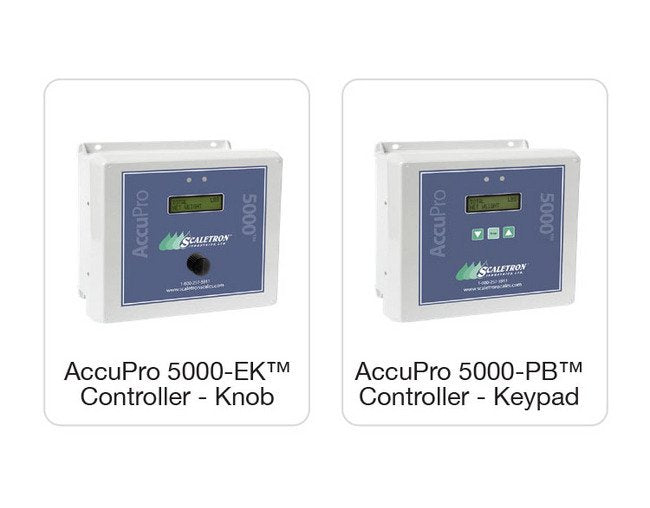

Digital Controllers Digital Controllers
Part Number - AccuPro 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - AccuPro 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.
Note Note
Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet away

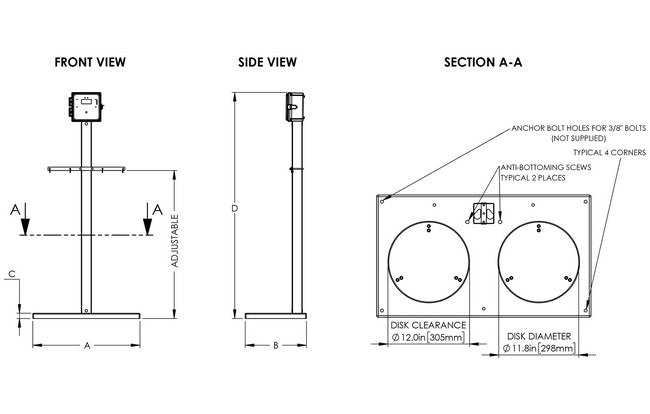

Scale Base Dimension D
66.5 in | 1690 mm
Scale Base Platform Height C
1.50 in | 38 mm
Scale Base Platform Length A
31.5 in | 800 mm
Scale Base Platform Width B
18.00 in | 457 mm
Scale Base Post Weight
15 lb
Scale Base Scale Weight
27 lb
Specifications Accuracy
0.1 %
Specifications Base Length
32 in
Specifications Base Width
18 in
Specifications Diameter
Up to 12 in
Specifications Net Capacity
0 to 150 lb | 68 kg | 70 kg
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Specifications Warranty
5 Years Full Warranty on All Scale Products
Specifications Weighing Properties Readout
Gallons (g) | Kilograms (kg) | Liters (L) | Pounds (lb)
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder coated finish, with molded fiberglass reinforced thermoplastic base and weighing disks for use in harsh environmentsLow profile platform design (1 -1/2") increases safety and ease of cylinder handlingSix (6) stainless steel bending beam, temperature compensated load cellsAll hardware is stainless steel to prevent corrosionElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acidsCylinder support and chains
