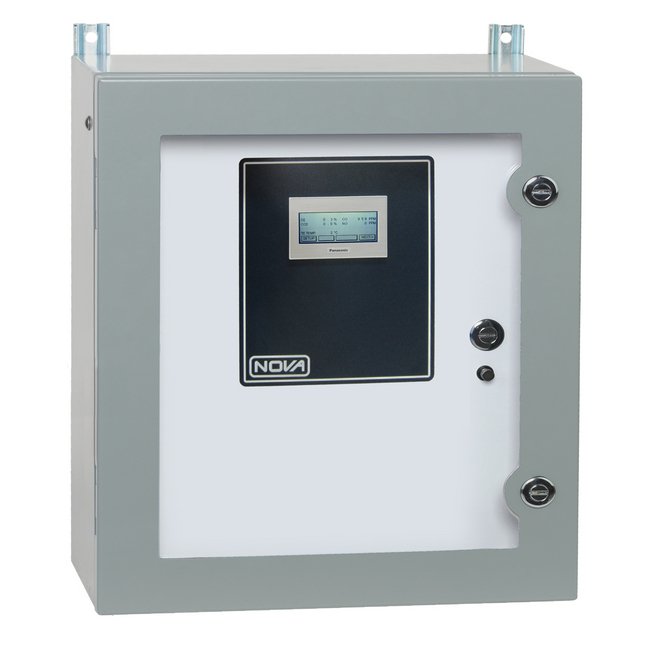

Model 253, Continuous Low Range Dew Point Analyzer, Wall mounted
Model 253, Continuous Low Range Dew Point Analyzer, Wall mounted
SKU:BYI-34877c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 253, Continuous Low Range Dew Point Analyzer, Wall mounted
$49.99
Quantity: 1
Claim Your Seller Account
Model 253, Continuous Low Range Dew Point Analyzer, Wall mounted
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 253 Series Continuous Analyzers for Low Range Dew Point have been designed primarily for accurate dew point analysis of heat treating atmospheres, instrument air, or other applications which may have typical dew points that are lower than what can be read by standard dew point analyzers, such as the Nova 257 Series. For analysis of dry non-corrosive industrial gases, or dry oil-free air. The dielectric ceramic sensor provides stable and accurate measurements and is not affected by most gas compositions, except those containing ammonia or corrosive gases such as SO2, SO3, and HCl. A built-in sample pump draws in samples that are at or near atmospheric pressure. Alternatively, a regulator can be supplied where the sample gas is under pressure. The sample flow is shown on a small rotameter with flow control valve. The analyzer reads the dew point continuously with digital display and 4-20mA output.
Product Specifications
Applications 0
For checking lower range dew points of air, hydrogen/nitrogen atmospheres or other dry-oil free gases.
Calibration 0
On analyzed dry nitrogen for zero On known, current ambient air dew point for span Alternatively, the analyzer may be returned to Nova for a certified calibration
Features 0
• Low range of -80° to +30°C (or -112° to +86°F) dew point • Rugged design that is easy to operate • Use on any non-corrosive industrial gases or air • Long-life dielectric ceramic sensor • Can be calibrated in the field • Bright digital readout • Built-in sample pump or pressure regulator, and filter • 4-20mA output, non-isolated • NEMA 4 enclosure standard
Options 0
• High or Low dew point alarm• Isolated 4-20mA recorder outputs• NEMA 12, 4X, or rack mount enclosures available
Specifications Accuracy Repeatability
±2°C Dew Point from -80 to -17°C; ±1°C Dew Point from -17 to 30°C | ±2°F Dew Point from -112 to 0°F; ±1°F Dew Point from 0 to 86°F
Specifications Alarms
High or low dew point alarm with relay contact
Specifications Ambient Temperature Range
-18 to 49 ºC | 0 to 120 ºF
Specifications Drift
±2% of full scale per month maximum
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±2°F / °C over measurement range
Specifications Method Of Detection
Dielectric polymer sensor that changes capacitance with moisture variation
Specifications Output Options
4-20mA output, isolated or non-isolated
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz also available
Specifications Ranges Available
-112°F to +86°F | -80°C to +30°C
Specifications Resolution
1°
Specifications Response Time T 90
Less than 60 seconds to T90 at higher dew points; Lower dew points may take an hour or more to dry down from ambient air
Specifications Size Weight
Approx. 51 x 41 x 26 cm @ 10 kg (20" H x 16" W x 10" D @ 20lbs)
Unique Applications 0
The 253 Series may not be appropriate for use when ammonia or other corrosive gases are present. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
