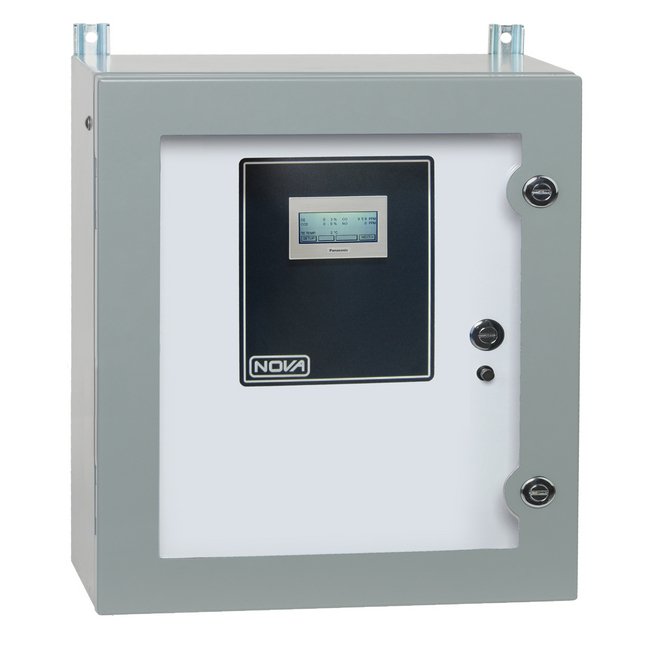

Model 257N4, Continuous Standard Range Dew Point Analyzer, Wall mounted NEMA 4 (IP65) enclosure rating
Model 257N4, Continuous Standard Range Dew Point Analyzer, Wall mounted NEMA 4 (IP65) enclosure rating
SKU:BYI-440c5b
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 257N4, Continuous Standard Range Dew Point Analyzer, Wall mounted NEMA 4 (IP65) enclosure rating
$49.99
Quantity: 1
Claim Your Seller Account
Model 257N4, Continuous Standard Range Dew Point Analyzer, Wall mounted NEMA 4 (IP65) enclosure rating
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 257 Series Continuous Dew Point Analyzers have been designed primarily for accurate dew point measurement of exothermic/endothermic heat treating atmospheres and other similar applications.The dielectric polymer sensor provides stable and accurate dew point measurements and is not affected by most gas compositions. A built-in sample pump draws in samples that are of insufficient pressure from the process. The sample flow is shown on a small rotameter with valve. The analyzer then reads the dew point continuously.Depending on the application, the following models may be relevant:• 257N4: applications at atmospheric pressure • 257CAA-B - compressed air applications 5 to 125 psig • 257CAA-C - compressed air applications 5 up to 3000 psig
Product Specifications
Applications 0
For continuous dew point analysis at atmospheric pressure of air, heat treat furnace gases, compressed air lines and other applications with minor amounts of oils or contaminants present.
Calibration 0
Calibration is easily performed in the field using the optional calibration kit (Part no. NDPCK-02) Alternatively, the analyzer may be returned to Nova for a certified calibration
Features 0
Standard range of -40 to +68°F (-40 to +20°C) dew point. Other ranges and units of measure available on request Rugged design that is easy to operate Use on any non-corrosive gas Long-life dielectric polymer sensor May be calibrated in the field Bright digital readout Built in sample pump, filter, and flow meter NEMA 4 enclosure is standard Sensor easily replaced if contaminated Factory calibrated to NIST traceable standards
Options 0
Compressed Air Configuration for dew point at line pressure 4-20mA recorder output Calibration kit Carbon potential calculation, using input from customer-supplied Type K thermocouple
Specifications Accuracy Repeatability
±1°F (±1°C) Dew Point
Specifications Alarms
High or low dew point alarm with relay contact
Specifications Ambient Temperature Range
-18 to 49 ºC | 0 to 120 ºF
Specifications Drift
Less than 1% of full scale per month
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
Better than 1°F (1°C) Dew Point
Specifications Method Of Detection
Dielectric polymer sensor that changes capacitance with moisture variation
Specifications Output Options
4-20mA output, isolated or non-isolated
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz also available
Specifications Ranges Available
-40°F to +104°F (-40°C to +40°C) Dew Point
Specifications Resolution
±1°F (1°C) Dew Point
Specifications Response Time T 90
Less than 60 seconds after initial purge down
Specifications Size Weight
Approx. 51 x 41 x 26 cm @ 10 kg (20" H x 16" W x 10" D @ 20lbs)
Unique Applications 0
The 257 Series should not be used to measure dew points when corrosive gases are present. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
