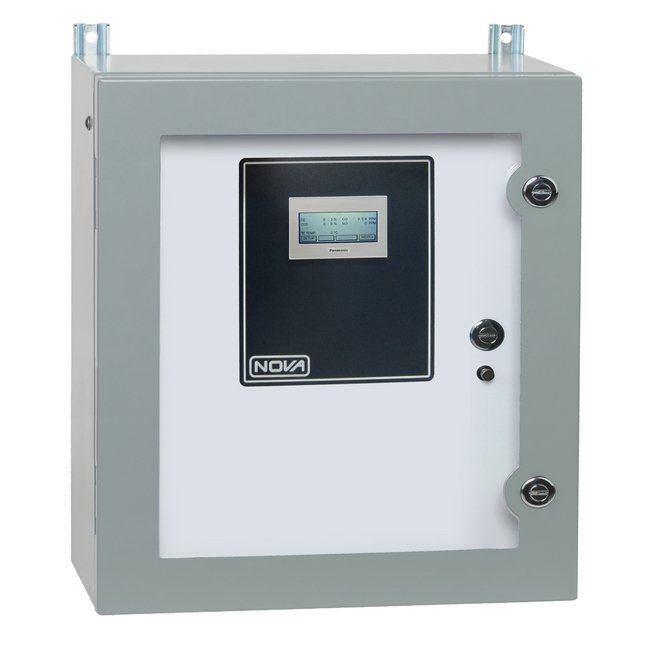

The Nova 410 Series represent Nova's best value in continuous process O2 analysis. This analyzer utilizes a long-life electrochemical 'fuel cell' sensor for the detection of Oxygen in process gases. The sensor produces a small millivoltage output which is directly proportional to the Oxygen detected. The output is then amplified and displayed on a digital readout meter and can also be sent to an optional recorder output. The 410 can be supplied with sampling pump or pressure regulator to suit most applications.Standard Cabinet: NEMA 4 Weather-proof steel cabinet with window.Optional: 19" rack mount cabinet also available in some applications.
Product Specifications
Applications 0
For continuous analysis of oxygen (O2) in process gas streams. Also recommended for other applications such as O2 enrichment of combustion air, flue gas analysis, oxygen deficiency analysis, and many more.
Calibration 0
Nitrogen for zero Air or analyzed calibration gas for span
Features 0
Best value continuous O2 analyzer Bright digital readout Long life electrochemical O2 sensor Fast response (T90 - 6 to 8 seconds) Microprocessor control for push button calibration Easy-to-maintain modular layout Built-in sample pump or pressure regulator 4-20mA output
Options 0
Hi/Low gas, and low flow alarms available Isolated 4-20mA, RS485 outputs available Light-duty sample conditioning systems available Cabinet cooler available
Specifications Accuracy Repeatability
Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
32 to 122°F (0 to 50°C), Lower temperatures (-5°F, -20°C) with Cold Weather Package
Specifications Analyzer Type
O2 Analyzer
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' O2 sensor. Expected life 3 to 5 years depending on typical measurement concentrations.
Specifications Output Options
4-20mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS485
Specifications Primary Gases To Be Measured
Oxygen (O2)
Specifications Ranges Available
Any range from 0-2.0% to 0-100.0% O2
Specifications Size Weight
NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
