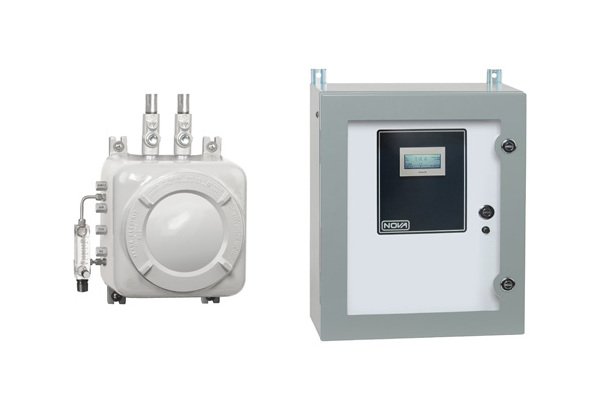

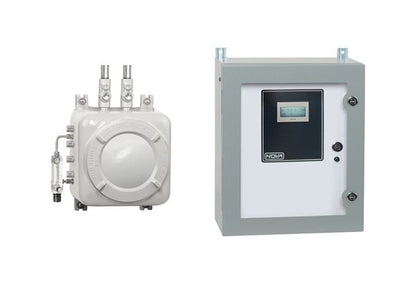

Model 410N4N7 Process Oxygen Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 410N4N7 Process Oxygen Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYP-fc34e7
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 410N4N7 Process Oxygen Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 410N4N7 Process Oxygen Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 410 Series represent Nova's best value in continuous process O2 analysis. This analyzer utilizes a long-life electrochemical 'fuel cell' sensor for the detection of Oxygen in process gases. The sensor produces a small millivoltage output which is directly proportional to the Oxygen detected. The output is then amplified and displayed on a digital readout meter and can also be sent to an optional recorder output. The 410 can be supplied with sampling pump or pressure regulator to suit most applications.Cabinets: Wall Mounted NEMA7 UL/CSA Explosion-proof sensor cabinet with NEMA4 wall-mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
For continuous analysis of oxygen (O2) in clean, dry process gas streams. Also recommended for other applications such as O2 enrichment, oxygen deficiency analysis, and many more.
Calibration 0
Nitrogen for zero Air or analyzed calibration gas for span
Features 0
Best value continuous O2 analyzer Bright digital readout Long-life electrochemical O2 sensor Fast response (T90 - 6 to 8 seconds) Microprocessor control Easy-to-maintain modular layout Built in sample pump or pressure regulator 4-20mA output
Options 0
Hi/Low gas and low flow alarms available Isolated analog, RS485 outputs available
Specifications Accuracy Repeatability
Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
32 to 122°F (0 to 50°C), Lower temperatures (-5°F, -20°C) with Cold Weather Package
Specifications Analyzer Type
O2 Analyzer
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' O2 sensor. Expected life 3 to 5 years depending on typical measurement concentrations.
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS485 outputs
Specifications Primary Gases To Be Measured
Oxygen (O2)
Specifications Ranges Available
Any range from 0-2.0% to 0-100.0% O2
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
