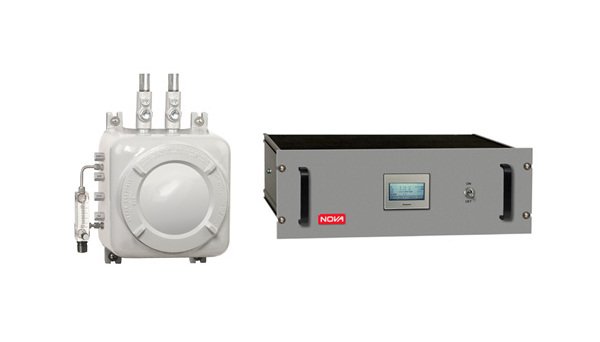

Model 410RMN7 Process Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)

Name: Model 410RMN7 Process Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
Brand: Nova Analytical Systems
SKU: BYP-49c9f8
Price: 49.99 USD
Availability: OutOfStock

SKU:BYP-49c9f8

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nova 410 Series represent Nova's best value in continuous process O2 analysis. This analyzer utilizes a long-life electrochemical 'fuel cell' sensor for the detection of Oxygen in process gases. The sensor produces a small millivoltage output which is directly proportional to the Oxygen detected. The output is then amplified and displayed on a digital readout meter and can also be sent to an optional recorder output. The 410 can be supplied with sampling pump or pressure regulator to suit most applications.Cabinets: Wall Mounted NEMA7 UL/CSA Explosion-proof sensor cabinet with 19" rack mount control cabinet (two separate cabinets)

Product Specifications

Applications 0

For continuous analysis of oxygen (O2) in process gas streams. Also recommended for other applications such as O2 enrichment of combustion air, flue gas analysis, oxygen deficiency analysis, and many more.

Calibration 0

Nitrogen for zero Air or analyzed calibration gas for span

Features 0

Best value continuous O2 analyzer Bright digital readout Long life electrochemical O2 sensor Fast response (T90 - 6 to 8 seconds) Microprocessor control for push button calibration Easy-to-maintain modular layout Built in sample pump or pressure regulator 4-20mA outputs

Options 0

Hi/Low gas, low flow, and diagnostic alarms available Isolated analog, RS232, RS485, MODBUS, and Ethernet outputs available Sensors mounted in temperature controlled heated box to improve accuracy High temperature filters and probes

Specifications Accuracy Repeatability

Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale

Specifications Alarms

High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm

Specifications Ambient Temperature Range

32 to 122°F (0 to 50°C), Lower temperatures (-5°F, -20°C) with Cold Weather Package

Specifications Analyzer Type

O2 Analyzer

Specifications Drift

Less than 2% of full scale per month

Specifications Hazardous Area Rating Options

Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD

Specifications Linearity

Below 30% O2 ±1% of full scale; above 30% O2 ±2% of full scale

Specifications Method Of Detection

Customer replaceable electrochemical 'fuel cell' O2 sensor. Expected life 3 to 5 years depending on typical measurement concentrations.

Specifications Output Options

4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, MODBUS, Ethernet outputs

Specifications Power

115 VAC, 60 Hz | 220 VAC, 50 Hz

Specifications Primary Gases To Be Measured

Oxygen (O2)

Specifications Ranges Available

Any range from 0-2.0% to 0-100.0% O2

Specifications Resolution

0.1% O2

Specifications Response Time T 90

6-8 seconds to 90% step change

Specifications Size Weight

EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
