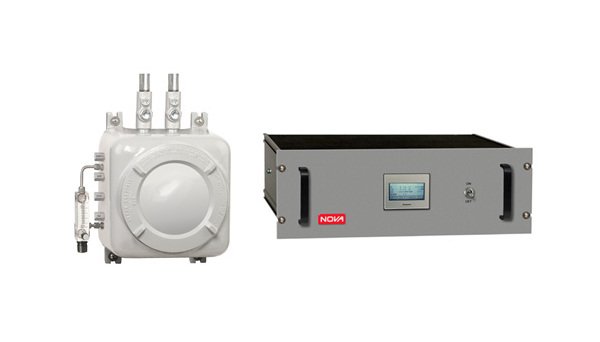

Model 412RMN7 Paramagnetic Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
Model 412RMN7 Paramagnetic Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
SKU:BYP-2ecb52
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 412RMN7 Paramagnetic Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 412RMN7 Paramagnetic Oxygen Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova 412 Series O2 analyzers utilize a magneto-dynamic paramagnetic measuring cell and powerful selenium cobalt magnet assembly with on-board pre-amplification to provide the highest standard of O2 analysis. Accuracy is further augmented by built-in barometric pressure compensation and detector temperature control. For high purity applications (Model 412HP), a high resolution digital readout is added.In operation, the magneto-dynamic cell makes use of the principle that oxygen is drawn into a magnetic field, thereby increasing the force exerted on a diamagnetic body suspended in the field. The amount of current necessary to restore the position of the body is directly proportional to the O2 level of the sample gas. Very few other gases respond this way, making this method of detection very specific to oxygen.Cabinets: Ex-proof sensor housing for Class 1 Div 1 Grp BCD areas, with rack mount control cabinet for non-hazardous areas (two separate enclosures)
Product Specifications
Applications 0
For continuous analysis of oxygen (O2) in process gas streams that contain gases that interfere with other methods of O2 measurement. For high accuracy or high purity applications.
Calibration 0
Nitrogen for zero Air or analyzed calibration gas for span
Features 0
Highest accuracy O2 analyzer, very stable Fast response (T90 - 4 to 5 seconds) and bright digital readout Linear over entire 0-100% range Microprocessor control Non-consumable O2 detector, no periodic replacement required Built in sample pump or pressure regulator, and 4-20mA output
Options 0
Hi/Low gas, low flow alarms available Isolated analog, RS485 outputs available High purity version available for 98-100% O2 (412HP)
Specifications Accuracy Repeatability
±1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
O2 Analyzer
Specifications Drift
±0.2% of full scale per month
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
±0.5% of full scale or 0.05%, whichever is greater
Specifications Method Of Detection
Magneto-dynamic paramagnetic O2 cell
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
With back-pressure control: 1.00, 2.00, 5.00, 25.00, 100.0 % O2 | Without back-pressure control: 1.0, 2.0, 5.0 % O2
Specifications Resolution
0.1% or 0.01% O2, depending on back-pressure control
Specifications Response Time T 90
4 - 5 seconds at a sample flow of 1 LPM
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
