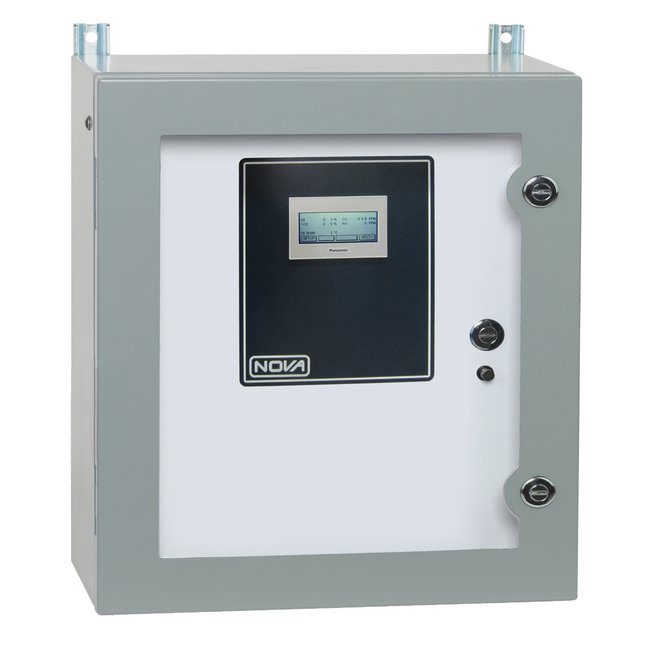

Model 415N4N7 Trace Oxygen Analyzer, , ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 415N4N7 Trace Oxygen Analyzer, , ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYP-6db4b6
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 415N4N7 Trace Oxygen Analyzer, , ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 415N4N7 Trace Oxygen Analyzer, , ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.Depending on application, some light-duty sample conditioning features may be available. For clean process measurements, PPM-level O2 gas. This electrochemical type sensor is unaffected by most other gases in the sample including most hydrocarbons and acidic gases such as carbon dioxide (CO2), hydrogen sulfide (H2S), and sulfur dioxide (SO2). Typical O2 sensor life is 1-2 years or longer depending on measurement concentrations and sample gas exposure. The sensor may be easily replaced by the customer.All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinets: (two separate cabinets)Detector Cabinet - Wall Mounted NEMA7 UL/CSA Explosion-proof Class 1 Div1 Grp BCDControl Cabinet - NEMA4 wall-mount non-hazardous areas
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of PPM levels of oxygen (O2) in clean / dry gas streams. Applications include blanketing mixtures, glove boxes, electronics, research, hydrogen/nitrogen mixtures, and many others.
Calibration 0
Nitrogen for zero Air or analyzed calibration gas for span
Features 0
Touch-screen display for gas readings Ranges available from 0 to 100 PPM to 0 to 9,999 PPM O2 Electrochemical O2 sensor is unaffected by hydrocarbons in the sample Solenoid valves trap PPM O2 sample to avoid sensor depletion when analyzer is powered off Easy-to-maintain, modular layout Non-isolated 4-20mA recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output available Light-duty pre-filter & condensate removal Cabinet cooling available (for control cabinet only)
Specifications Accuracy Repeatability
±1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
O2 Analyzer
Specifications Drift
Less than 1% of full scale per week
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Customer replaceable 'fuel cell' ppm oxygen sensor
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20mA
Specifications Ranges Available
Any range between 0-100 PPM and 0-10,000 PPM
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
Unique Applications 0
The O2 sensor in the Model 415 is not normally affected by gas stream composition. However, continuous or frequent exposure to high levels of acid gases such as carbon dioxide (CO2) and sulfur dioxide (SO2) can cause decreased cell life. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
