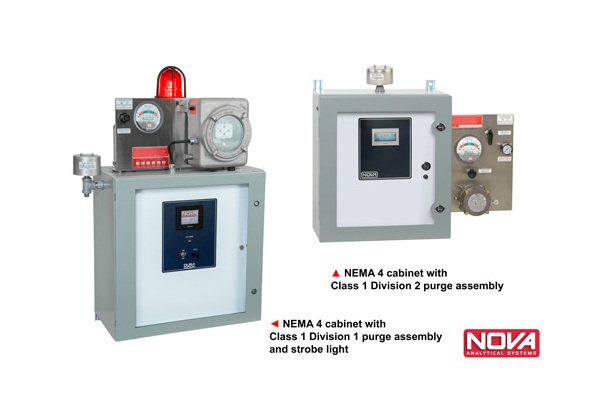

The Nova 420 Series CO2 analyzers utilize a simple and reliable microprocessor-based non-dispersive infrared detector specific to CO2. The detector pulses an infrared beam of light through the sample tube, without the need for a mechanical chopper. In operation, the internal sample pump draws the sample gas through a filter, flow meter, and then on to the infrared detector. The detector output is digitally linearized and then displayed as percent CO2 on the digital meter. The output is also available as an analog or digital signal.Cabinet: NEMA 4 cabinet with Hazardous Area Purge System; available for Class 1 Div1 & Div2 hazardous areas.
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of carbon dioxide (CO2) in process gas streams using an infrared detector. Both percent and PPM analysis available.
Calibration 0
Easily zero checked on ambient air or nitrogen (N2) Span using a known CO2 in nitrogen calibration gas.
Features 0
Detector is temperature-controlled or compensated for improved analytical stability High ranges available (up to 100%) Low ranges available (5,000 ppm) Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output
Options 0
Hi/Low gas and low flow alarms available Isolated analog, RS485 outputs available
Specifications Accuracy Repeatability
±1-3% of full scale, depending on measurement range and application
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C). Optional: up to 130°F (55°C) with cabinet cooler
Specifications Analyzer Type
CO2 Gas Analyzer
Specifications Drift
Usually 2% of full scale per month or less, depending on range and application
Specifications Hazardous Area Rating Options
Class 1 Div 2 or Class 1 Div 1 Hazardous Area Ratings available
Specifications Linearity
Usually ±1.5% of full scale, depending on gas measured
Specifications Method Of Detection
Single cell NDIR with no moving parts
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, USB serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
420 - 0-1, 0-5, 0-10, 0-20, 0-30, 0-50, 0-100% CO2 | 420L - 0-5,000 PPM CO2 | 420L-LP - 0-500, 1000, 2000, 5000, 10000 PPM (may be available, check with NOVA)
Specifications Resolution
1 or 10ppm on most ppm ranges; 0.1% on most % ranges
Specifications Response Time T 90
Usually 20-30 seconds to 90% step change, depending on range and application
Specifications Size Weight
NEMA 4: 61H x 51W x 31D cm (24"H x 20"W x 12"D) (not including purge panel & vent)
Unique Applications 0
The 420 Series analyzers are designed for detection of CO2 in non-corrosive gas streams. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
