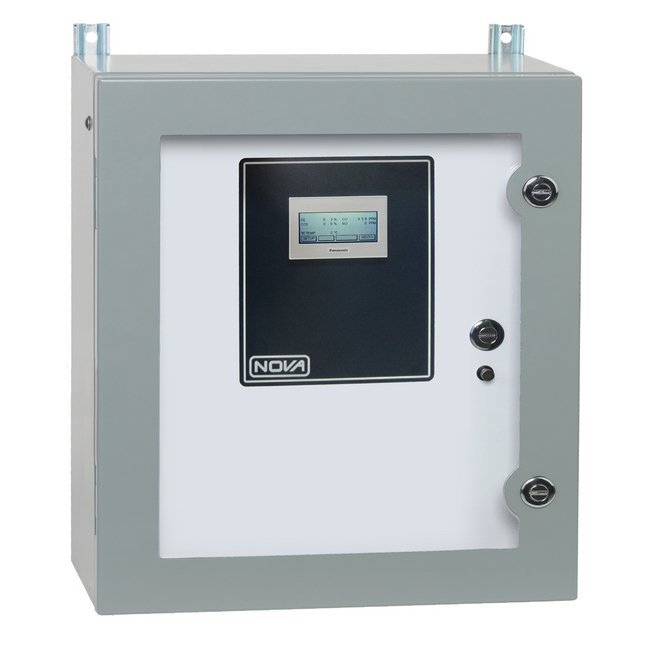

Model 425N4 Binary Gas by Thermal Conductivity Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
Model 425N4 Binary Gas by Thermal Conductivity Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
SKU:BYP-f865ae
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 425N4 Binary Gas by Thermal Conductivity Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Claim Your Seller Account
Model 425N4 Binary Gas by Thermal Conductivity Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continous gas measurments in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series. Depending on application, some light-duty sample conditioning features may be available. For clean process measurements, of certain binary gas mixtures such as H2 or He in Air. This analyzer utilizes a temperature-controlled, thermalconductivity (TC) cell for the required measurement. The cell produces a small millivoltage output which is directly proportional to the gas detected. The analyzer can be supplied with a pump or pressure regulator depending on customer requirement. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows USB connection & data-logging to personal computers.Standard Cabinet: NEMA 4 Weather-proof steel cabinet with window.Optional: 19" rack mount cabinet also available in some applications.
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of a choice of many binary gas mixtures comprised of H2, CO2, O2, CH4, SO2, Ar, He, NH3, SF6, Air, and others. Applications include heat treating atmospheres, welding gas mixtures, blanketing gas mixtures, ammonia synthesis, gas purge monitoring, magnesium blanketing by SF6, and others.
Calibration 0
In most cases, on bottled gas for Span and Zero
Features 0
Bright digital readout Lower cost than infrared, GC, or mass spectrometer High stability, microprocessor-controlled, long-life thermal conductivity (TC) cell Easy-to-maintain modular layout Built-in sample pump or pressure regulator 4-20mA recorder output Sensors temperature-controlled for maximum stability
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available Light-duty pre-filter & condensate removal Rack mount cabinet available, depending on application Cabinet cooling available for NEMA4 cabinet
Specifications Accuracy Repeatability
Usually ±1% of full scale, depending on gas mixture & application
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C). Optional: up to 130°F (55°C) with cabinet cooler.
Specifications Analyzer Type
Binary Gas Analyzer
Specifications Drift
Usually less than 1% of full scale per month, depending on gas mixture & application
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
Usually ±1% of full scale, depending on gas mixture & application
Specifications Method Of Detection
Temperature-controlled TC cell
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, USB serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-2.0% to 0-100.0% and truncated ranges such as 85.0-100.0% Consult Nova regarding feasibility of measuring your specific gas mixture.
Specifications Response Time T 90
Usually 10-15 seconds to 90% step change, depending on gas mixture & application
Specifications Size Weight
NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
