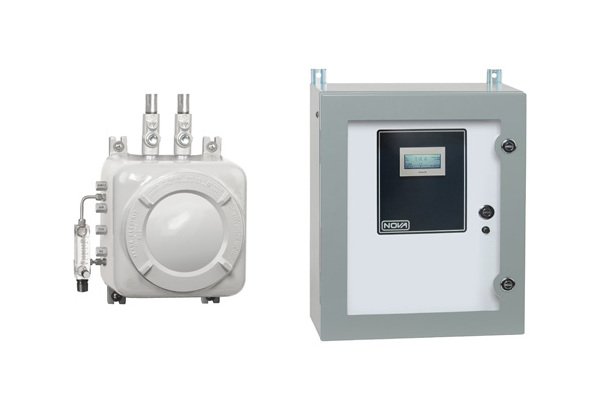

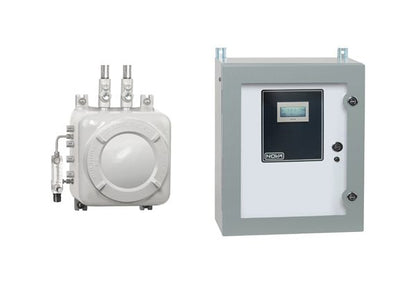

Model 425N4N7 Binary Gas by Thermal Conductivity Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 425N4N7 Binary Gas by Thermal Conductivity Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYP-536ff8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 425N4N7 Binary Gas by Thermal Conductivity Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 425N4N7 Binary Gas by Thermal Conductivity Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continous gas measurments in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series. Depending on application, some light-duty sample conditioning features may be available. For clean process measurements, of certain binary gas mixtures such as H2 or He in Air. This analyzer utilizes a temperature-controlled, thermalconductivity (TC) cell for the required measurement. The cell produces a small millivoltage output which is directly proportional to the gas detected. The analyzer can be supplied with a pump or pressure regulator depending on customer requirement. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows USB connection & data-logging to personal computers.Cabinets: Wall Mounted Class1 Div1 GrpBCD NEMA7 UL/CSA Explosion-proof sensor cabinet with NEMA4 wall-mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
For continuous analysis of many binary gas mixtures comprised of H 2 , CO 2 , O 2 , CH 4 , SO 2 , Ar, He, NH 3 , SF 6 , air, and others. Applications include heat treating atmospheres, welding gas mixtures, blanketing gas mixtures, ammonia synthesis, leak detection, purge monitoring, flue gas, magnesium blanketing by SF 6 and others.
Calibration 0
Air or nitrogen for zero Analyzed calibration gas for span
Features 0
Bright digital readout Lower cost than infrared, GC or mass spectrometer High stability, microprocessor-controlled, long-life thermal conductivity (TC) cell Easy-to-maintain modular layout Built in sample pump or pressure regulator 4-20 mA outputs Sensors mounted in temperature controlled heated box to improve accuracy
Options 0
Hi/Low gas, low flow, and diagnostic alarms available Isolated analog, RS232, RS485, MODBUS, and Ethernet outputs available Sample conditioning systems available for removal of moisture, acidic gas, and dust Cabinet purge system available for use in hazardous areas One-step 'cal-now' button calibration with touch screen LCD display Full automatic calibration with touch screen LCD display Cold weather package for operation to -5°F (-20°C) Cabinet coolers can be fitted to most models
Specifications Accuracy Repeatability
±1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
32 to 122°F (0 to 50°C), Lower temperatures (-5°F, -20°C) with Cold Weather Package
Specifications Analyzer Type
Binary Gas Analyzer
Specifications Drift
Less than 1% of full scale per month
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Temperature-controlled TC cell.
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, MODBUS, Ethernet outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-2.0% to 0-100.0% and truncated ranges such as 85.0-100.0% Consult Nova regarding feasibility of measuring your specific gas mixture.
Specifications Response Time T 90
10-15 seconds to 90% step change
Specifications Size Weight
Dimensions will vary depending on enclosure style and options required
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
