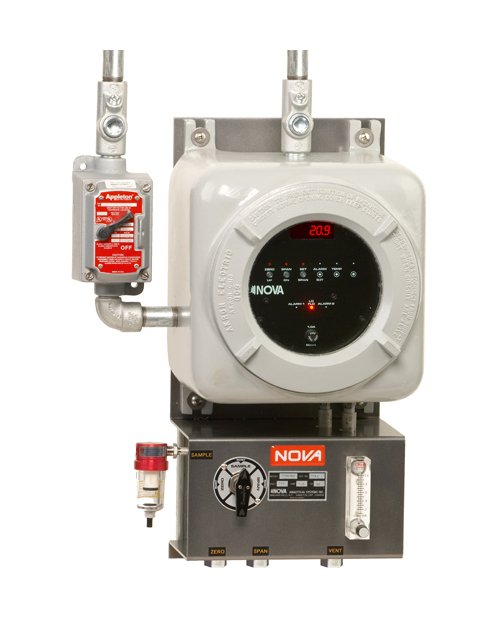

Model 430N7MC Hydrogen Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Meets Class 1 Div 1 Group BCD Rating
Model 430N7MC Hydrogen Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Meets Class 1 Div 1 Group BCD Rating
SKU:BYP-597201
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 430N7MC Hydrogen Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Meets Class 1 Div 1 Group BCD Rating
$49.99
Quantity: 1
Claim Your Seller Account
Model 430N7MC Hydrogen Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Meets Class 1 Div 1 Group BCD Rating
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.For clean process measurements, percent-level H2 gas. This analyzer utilizes a temperature-controlled, thermalconductivity (TC) cell for the detection of H2 in process gas. The cell produces a small millivoltage output which is directly proportional to the H2 detected. The analyzer can be supplied with a pump or pressure regulator depending on customer requirement. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows local USB connection & data-logging to personal computers.Cabinet: Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of up to 100% hydrogen (H2) in clean process gas streams.
Calibration 0
Nitrogen or air for zero Span using a known H2 in nitrogen calibration gas.
Features 0
Best value continuous H2 analyzer Local digital readout, 4-20mA recorder output Long life thermal conductivity (TC) detector with high accuracy and repeatability, cannot be burned out from loss of flow Easy-to-maintain, modular layout, fast response Built-in sample pump or pressure regulator Sensor temperature-controlled for maximum stability Ex-proof Class1 Div1 cabinet, with Non-intrusive Magnetic Calibration
Options 0
Hi/Low gas, low flow, and diagnostic alarms available Isolated analog, RS232, RS485 serial outputs available
Specifications Accuracy Repeatability
±1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
H2 Analyzer
Specifications Drift
Less than 1% of full scale per month
Specifications Hazardous Area Rating Options
Class 1, Div 1, Grp A-D Hazardous Area Rating
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Temperature-controlled TC cell. Expected life in excess of 10 years. Cell cannot be burned out due to loss of sample flow
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
Any range between 0-2% and 0-100% H2
Specifications Resolution
0.1% H2 (0.01% H2 available)
Specifications Response Time T 90
10-15 seconds to 90% step change
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
