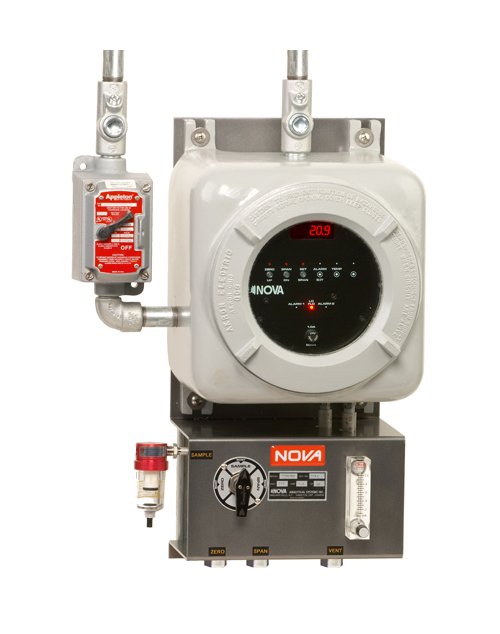

Model 460N7MC Sulfur Dioxide Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
Model 460N7MC Sulfur Dioxide Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
SKU:BYP-d43204
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 460N7MC Sulfur Dioxide Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
$49.99
Quantity: 1
Claim Your Seller Account
Model 460N7MC Sulfur Dioxide Analyzer, Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of sulfur dioxide (SO2) in process gas streams using an infrared detector. Both percent and PPM analysis available.Cabinet: Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD. Availability depends on application and environment. Sample conditioning options not available with this cabinet style.
Product Specifications
Applications 0
For continuous analysis of sulfur dioxide (SO2) in process gas streams using an infrared detector. Percent and PPM levels available as Models 460 & 460L respectively.
Calibration 0
Easily zero checked on ambient air On bottled SO2 in N2 gas for Span On bottled N2 or Air for Zero
Features 0
Percent (460) or PPM (460L) SO2 by infrared detector Low range PPM (461) SO2 by electrochemical sensor NDIR detector is sensitive, reliable, and non-depleting Electrochemical sensor is easy to replace when needed Touch-screen display for gas readings Easy-to-maintain modular layout Sensor is temperature controlled for maximum stability Built-in sample pump, flowmeter, and filters 4-20mA non-isolated recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available
Specifications Accuracy Repeatability
1-2% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C).
Specifications Analyzer Type
SO2 Analyzer
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
Class 1, Div 1, Grp A-D Hazardous Area Rating
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Low range PPM SO2 by electrochemical sensor | Microprocessor based single cell NDIR
Specifications Output Options
4-20mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
460 - 0-1, 0-5, 0-10% SO2 | 460L - 0-200, 0-1000 PPM SO2 (check availability with Nova)
Specifications Resolution
0.1% SO2 on % versions, 10 PPM SO2 on PPM versions
Specifications Response Time T 90
15-30 seconds to T-90
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D)
Unique Applications 0
Nova 460 / 461 analyzers are suitable for clean dry process gases only. Some gases may interfere with SO2 measurement; complete information on sample gas composition is required. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
