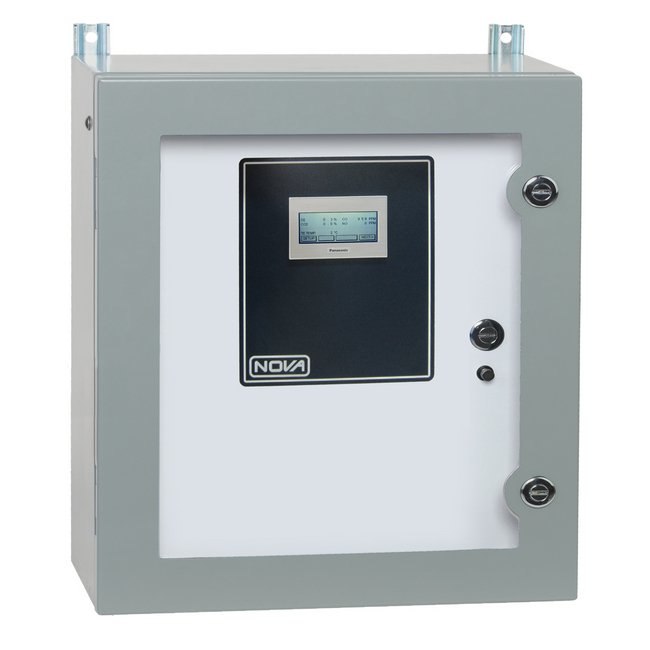

Model 460N7N4 Sulfur Dioxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 460N7N4 Sulfur Dioxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYP-d9c8b0
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 460N7N4 Sulfur Dioxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 460N7N4 Sulfur Dioxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.Depending on application, some light-duty sample conditioning features may be available. For clean process measurements, percent and ppm-level SO2 gas.All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinets: Wall Mounted NEMA7 UL/CSA Explosion-proof sensor cabinet with NEMA4 wall-mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
For continuous analysis of sulfur dioxide (SO2) in process gas streams using an infrared detector. Percent and PPM levels available as Models 460 & 460L respectively.
Calibration 0
Easily zero checked on ambient air On bottled SO2 in N2 gas for Span On bottled N2 or Air for Zero
Features 0
Percent (460) or PPM (460L) SO2 by infrared detector Low range PPM (461) SO2 by electrochemical sensor NDIR detector is sensitive, reliable, and non-depleting Electrochemical sensor is easy to replace when needed Touch-screen display for gas readings Easy-to-maintain modular layout Sensor is temperature controlled for maximum stability Built-in sample pump, flowmeter, and filters 4-20mA non-isolated recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available Light-duty pre-filter & condensate removal Up to 6 other gases measured (depending on application) Cabinet cooling available
Specifications Accuracy Repeatability
1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C).
Specifications Analyzer Type
SO2 Analyzer
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Low range PPM SO2 by electrochemical sensor | Microprocessor based single cell NDIR
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
460 - 0-1, 0-5, 0-10% SO2 | 460L - 0-2000, 0-3000, 0-5000, PPM SO2
Specifications Resolution
0.1% SO2 on % versions, 10 PPM SO2 on PPM versions
Specifications Response Time T 90
15-30 seconds to T-90
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
Unique Applications 0
Nova 460 / 461 analyzers are suitable for clean dry process gases only. Some gases may interfere with SO2 measurement; complete information on sample gas composition is required. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
