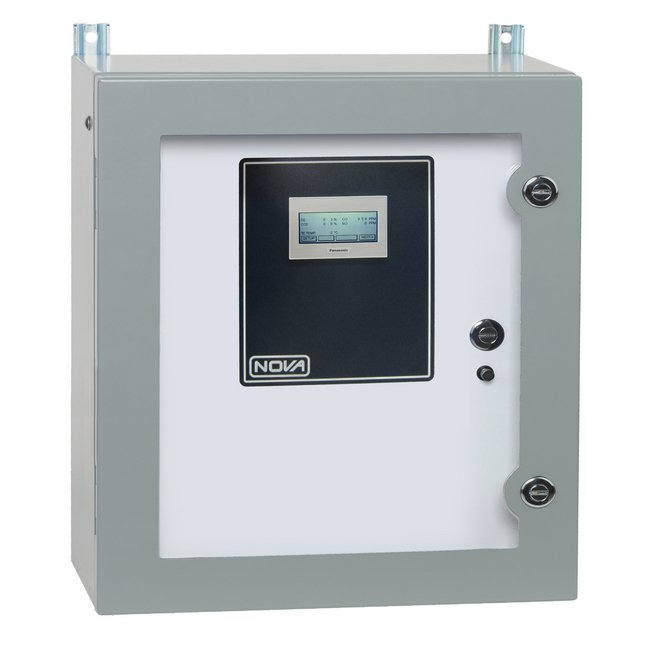

Model 470N4, Methane Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
Model 470N4, Methane Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
SKU:BYI-a990a5
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 470N4, Methane Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Claim Your Seller Account
Model 470N4, Methane Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series. Depending on application, some light-duty sample conditioning features may be available. For clean process measurements, percent-level HC's as CH4 gas. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinet: NEMA 4 Weather-proof steel cabinet with window
Product Specifications
Applications 0
For continuous analysis of methane (CH4) in process gas streams using an infrared detector.
Calibration 0
On bottled CH4 gas for Span On bottled N2 or Air for Zero
Features 0
Detector is temperature-controlled or compensated for improved analytical stability High ranges available (up to 100.0%) Low ranges available (to 1.00%) Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output Detector is reliable and non-depleting Fast response (T90 - less than 15 seconds)
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available Light-duty pre-filter & condensate removal Up to 6 other gases measured (depending on application) Cabinet cooling available
Specifications Accuracy Repeatability
1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C). Optional: up to 130°F (55°C) with cabinet cooler
Specifications Analyzer Type
Methane Analyzer
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Single cell NDIR with no moving parts
Specifications Output Options
4-20mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-1.00, 2.00, 5.00, 10.0, 30.0, 100.0% HC's as CH4
Specifications Resolution
0.1% CH4 on % versions
Specifications Response Time T 90
Less than 15 seconds
Specifications Size Weight
NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
Unique Applications 0
The 470 Series analyzers are designed for detection of CH4 in non-corrosive gas streams. Also, the presence of higher order hydrocarbons will make the CH4 reading erroneously high. Detector response varies with each HC in the sample gas. Consult Nova for these applications. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
