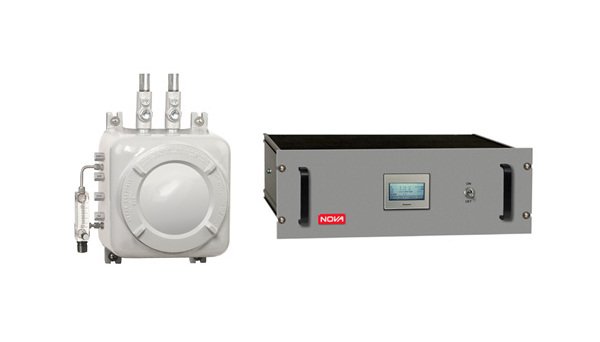

Model 470RMN7, Methane Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
Model 470RMN7, Methane Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
SKU:BYS-13a9b9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 470RMN7, Methane Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 470RMN7, Methane Analyzer, ex-proof sensor housing with rack mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.For clean process measurements, percent-level HC's as CH4 gas. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinets: Wall Mounted NEMA7 UL/CSA Class 1 Division 1 Groups BCD Explosion-proof sensor cabinet with 19" rack mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of Hydrocarbons (as CH4) in process gas streams using an infrared detector.
Calibration 0
Easily zero checked on ambient air or nitrogen (N2) Span using a known CH4 in nitrogen calibration gas.
Features 0
Detector is temperature-controlled or compensated for improved analytical stability High ranges available (up to 100.0%) Low ranges available (to 1.00%) Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output Detector is reliable and non-depleting Fast response (T90 - less than 15 seconds)
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logging available
Specifications Accuracy Repeatability
1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
Methane Analyzer (HC's as CH4)
Specifications Drift
Less than 2% of full scale per month
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Single cell NDIR with no moving parts
Specifications Output Options
4-20mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485 serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-1, 0-5, 0-10, 0-20, 0-30, 0-50, 0-100% HCs as CH4
Specifications Resolution
0.1% CH4 on % versions
Specifications Response Time T 90
Less than 15 seconds
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | RACK MOUNT: 22H x 48W x 47D cm (8.7"H x 19"W x 16"D)
Unique Applications 0
The 470 Series analyzers are designed for detection of CH4 in non-corrosive gas streams. Also, the presence of higher order hydrocarbons will make the CH4 reading erroneously high. Detector response varies with each HC in the sample gas. Consult Nova for these applications. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
