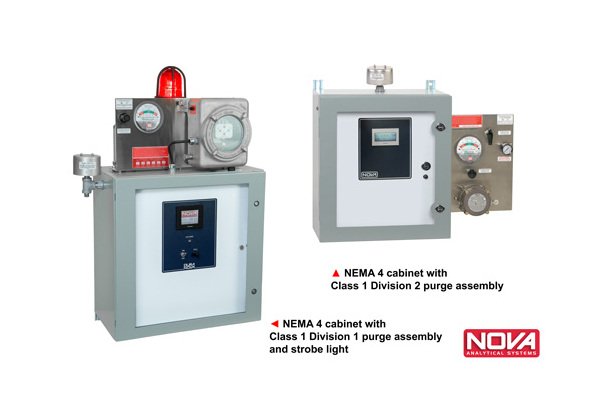

The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.For clean process measurements of ppm-level CO gas using an electro-chemical sensor. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinet: NEMA 4 cabinet with Hazardous Area Purge System; available for Class 1 Div1 or Class1 Div2 hazardous areas
Product Specifications
Applications 0
For continuous analysis of up to 0-10,000 PPM carbon monoxide (CO) in process gas streams using an electrochemical detector.
Calibration 0
Nitrogen for zero. Analyzed ppmCO calibration gas for span.
Features 0
Detector is temperature-controlled or compensated for improved analytical stability and fast response PPM range CO measurement by electrochemical sensor Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available Light-duty pre-filter & condensate removal Up to 6 other gases measured (depending on application) Cabinet cooling available Hazardous area purge systems; available for Class 1 Div1 or Div2 hazardous areas
Specifications Accuracy Repeatability
±1% of full scale
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C). Optional: up to 130°F (55°C) with cabinet cooler
Specifications Analyzer Type
CO Analyzer (ppm)
Specifications Drift
Less than 1% of full scale per month
Specifications Hazardous Area Rating Options
Class 1 Div 2 or Class 1 Div 1 Hazardous Area Ratings available
Specifications Linearity
Usually ±1.5% of full scale, depending on range and application
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' CO sensor. Expected life 1 to 3 years depending on typical measurement concentrations.
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
Any range from 0-100 PPM to 0-10000 PPM C0
Specifications Resolution
1 PPM CO up to 2,000 PPM; 10 PPM for greater than 2,000 PPM
Specifications Response Time T 90
6-8 seconds to 90% step change
Specifications Size Weight
NEMA 4: 61H x 51W x 31D cm (24"H x 20"W x 12"D) (not including purge panel & vent)
Unique Applications 0
The electrochemical CO sensor is unsuitable with certain background gases such as hydrogen. Also, this cell requires that a small amount of O2 be present in the sample, or that it be metered into the sample. Consult Nova for each application.
