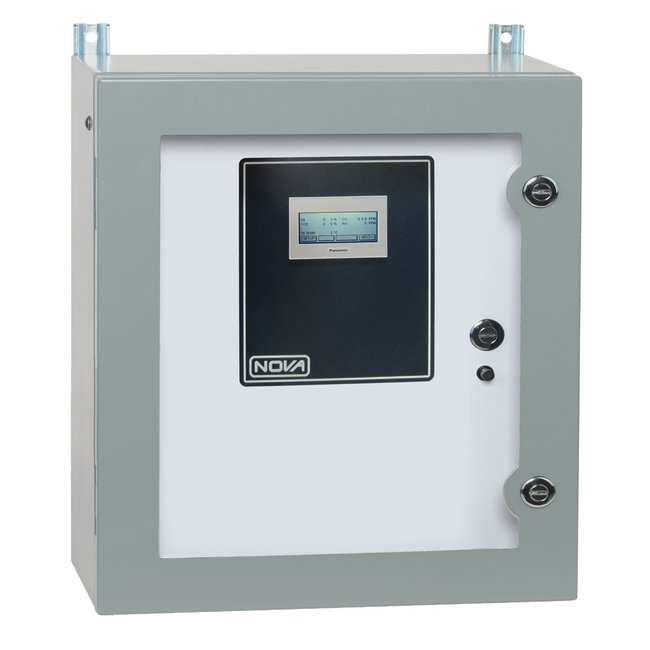

Model 480N4 PPM Carbon Monoxide Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
Model 480N4 PPM Carbon Monoxide Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
SKU:BYP-a448ff
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 480N4 PPM Carbon Monoxide Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Claim Your Seller Account
Model 480N4 PPM Carbon Monoxide Analyzer, Wall Mounted NEMA4 (IP65) Enclosure Rating
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series. Depending on application, some light-duty sample conditioning features may be available. For clean process measurements of ppm-level CO gas using an electro-chemical sensor. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability.Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinet: NEMA 4 rain-proof steel cabinet with window
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of up to 0-10,000 PPM carbon monoxide (CO) in process gas streams using an electrochemical sensor.
Calibration 0
Nitrogen for zero Analyzed ppmCO calibration gas for span.
Features 0
Detector is temperature-controlled or compensated for improved analytical stability and fast response PPM range CO measurement by electrochemical sensor Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available Light-duty pre-filter & condensate removal Up to 6 other gases measured (depending on application) Cabinet cooling available
Specifications Accuracy Repeatability
±1% of full scale based on 0-2,000 PPM range
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C). Optional: up to 130°F (55°C) with cabinet cooler
Specifications Analyzer Type
CO Analyzer (ppm)
Specifications Drift
Less than 1% of full scale per month or 10 PPM, whichever is greater
Specifications Hazardous Area Rating Options
General Purpose, Non-Hazardous
Specifications Linearity
Usually ±1.5% of full scale, depending on range and application
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' CO sensor
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
Any range from 0-100 PPM to 0-10000 PPM C0
Specifications Resolution
1 PPM CO up to 2,000 PPM; 10 PPM for greater than 2,000 PPM
Specifications Response Time T 90
Usually 6-8 seconds to 90% step change
Specifications Size Weight
NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
Unique Applications 0
The electrochemical CO sensor is unsuitable with certain background gases such as hydrogen. Also, this cell requires that a small amount of O2 be present in the sample, or that it be metered into the sample. Consult Nova for each application.
