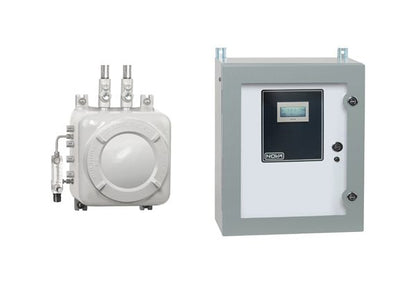

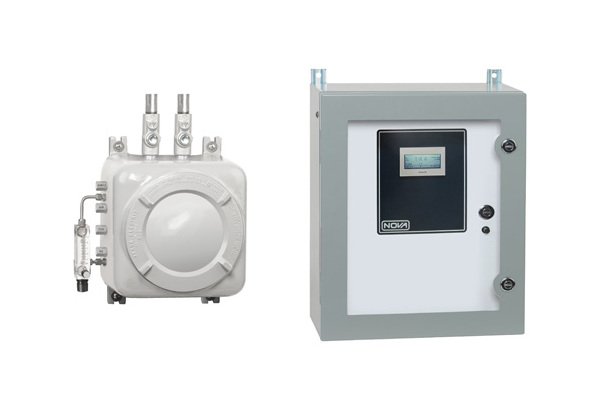

Model 480N4N7, Carbon Monoxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 480N4N7, Carbon Monoxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYP-37ccf4
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 480N4N7, Carbon Monoxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 480N4N7, Carbon Monoxide Analyzer, ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.For clean process measurements of ppm-level CO gas using an electro-chemical sensor. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability.Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinets: Wall Mounted NEMA7 UL/CSA Class1 Div1 Explosion-proof sensor cabinet, with NEMA4 wall-mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of up to 0-10,000 PPM carbon monoxide (CO) in process gas streams using an electrochemical sensor.
Calibration 0
On bottled ppmCO gas for Span On bottled N2 for Zero
Features 0
Detector is temperature-controlled or compensated for improved analytical stability and fast response PPM range CO measurement by electrochemical sensor Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available
Specifications Accuracy Repeatability
±1% of full scale based on 0-2,000 PPM range
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
CO Analyzer (ppm)
Specifications Drift
Less than 1% of full scale per month or 10 PPM, whichever is greater
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
Usually ±1.5% of full scale, depending on range and application
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' CO sensor. Expected life 1 to 3 years depending on typical measurement concentrations.
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485 serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
Any range from 0-100 PPM to 0-10000 PPM C0
Specifications Resolution
1 PPM CO up to 2,000 PPM; 10 PPM for greater than 2,000 PPM
Specifications Response Time T 90
6-8 seconds to 90% step change
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
Unique Applications 0
The electrochemical CO sensor is unsuitable with certain background gases such as hydrogen. Also, this cell requires that a small amount of O2 be present in the sample, or that it be metered into the sample. Consult Nova for each application.
