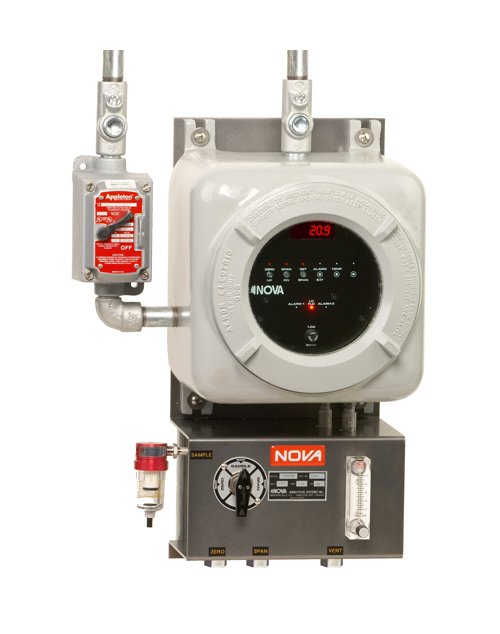

Model 480N7MC, Carbon Monoxide Analyzer, Wall Mounted NEMA7 UL/CSA Ex-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
Model 480N7MC, Carbon Monoxide Analyzer, Wall Mounted NEMA7 UL/CSA Ex-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
SKU:BYS-976dd3
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 480N7MC, Carbon Monoxide Analyzer, Wall Mounted NEMA7 UL/CSA Ex-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
$49.99
Quantity: 1
Claim Your Seller Account
Model 480N7MC, Carbon Monoxide Analyzer, Wall Mounted NEMA7 UL/CSA Ex-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series. For clean process measurements of ppm-level CO gas using an electro-chemical sensor. All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinet: Wall Mounted NEMA7 UL/CSA Explosion-proof with Non-intrusive Magnetic Calibration, Class 1 Div 1 Group BCD
Product Specifications
Applications 0
For continuous analysis of up to 0-10,000 PPM carbon monoxide (CO) in process gas streams using an electrochemical detector.
Calibration 0
Nitrogen for zero. Analyzed ppmCO calibration gas for span.
Features 0
Detector is temperature-controlled or compensated for improved analytical stability and fast response PPM range CO measurement by electrochemical sensor Touch-screen display for initial set-up Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output Ex-proof Class1 Div1 cabinet, with Non-intrusive Magnetic Calibration
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logger package available
Specifications Accuracy Repeatability
±1% of full scale based on 0-2,000 PPM range
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
CO Analyzer (ppm)
Specifications Drift
Less than 1% of full scale per month or 10 PPM, whichever is greater
Specifications Hazardous Area Rating Options
Class 1, Div 1, Grp A-D Hazardous Area Rating
Specifications Linearity
Usually ±1.5% of full scale, depending on range and application
Specifications Method Of Detection
Customer replaceable electrochemical 'fuel cell' CO sensor. Expected life 1 to 3 years depending on typical measurement concentrations.
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
Any range from 0-100 PPM to 0-10000 PPM C0
Specifications Resolution
1 PPM CO up to 2,000 PPM; 10 PPM for greater than 2,000 PPM
Specifications Response Time T 90
6-8 seconds to 90% step change
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D)
Unique Applications 0
The electrochemical CO sensor is unsuitable with certain background gases such as hydrogen. Also, this cell requires that a small amount of O2 be present in the sample, or that it be metered into the sample. Consult Nova for each application.
