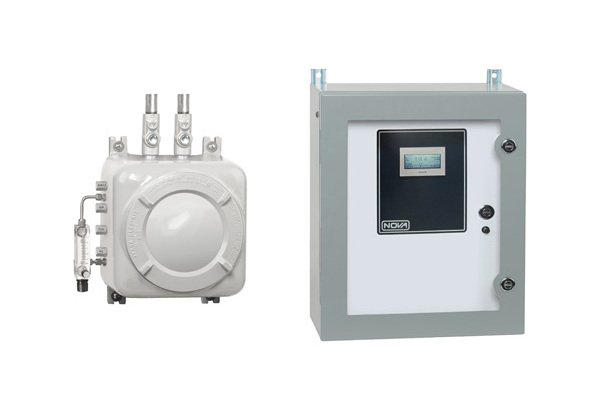

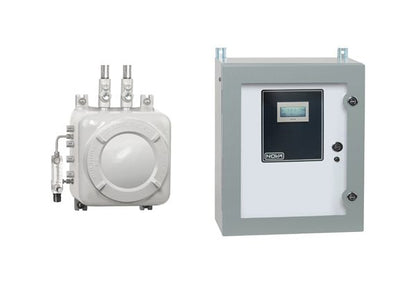

Model 481N4N7, Carbon Monoxide Analyzer (infrared), ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
Model 481N4N7, Carbon Monoxide Analyzer (infrared), ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
SKU:BYI-1f093d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 481N4N7, Carbon Monoxide Analyzer (infrared), ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Claim Your Seller Account
Model 481N4N7, Carbon Monoxide Analyzer (infrared), ex-proof sensor housing with NEMA4 wall-mount control cabinet (two separate enclosures)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nova FLEXI-NOVA Series Platform has been designed for continuous gas measurements in applications and environments that are less intensive. Lab work, research, clean processes, pre-treated / pre-cleaned produced gases, and others, may benefit from the FLEXI-NOVA series.Depending on application, some light-duty sample conditioning features may be available. For clean process measurements of percent-level CO gas by infrared detector.All sensors / detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Easy calibration using touch-screen controls. Serial Output Package allows connection & data-logging to personal computers via a choice of USB / RS-232 / RS-485.Cabinets: Wall Mounted NEMA7 UL/CSA Class1 Div1 Explosion-proof sensor cabinet, with NEMA4 wall-mount control cabinet (two separate cabinets)
Product Specifications
Applications 0
Light-duty analyzers for applications or environments that are less intensive. For continuous analysis of percent levels of carbon monoxide (CO) in process gas streams using an infrared detector.
Calibration 0
Easily Zero-checked on ambient air Span using bottled CO gas in N2
Features 0
Detector is temperature-controlled or compensated for improved analytical stability Standard ranges, any between 0-30% CO High ranges available (up to 100%) Touch-screen display for gas readings Built-in sample pump or pressure regulator Non-isolated 4-20mA analog recorder output
Options 0
Hi/Low gas and low flow alarms available Serial output & data-logging available
Specifications Accuracy Repeatability
±1-3% of full scale, depending on measurement range and application
Specifications Alarms
High and/or Low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating | Low flow alarm
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
CO analyzer (IR)
Specifications Drift
Usually 2% of full scale per month or less, depending on range and application
Specifications Hazardous Area Rating Options
Control Cabinet - General Purpose, Non-Hazardous | Detector Cabinet - NEMA7 Class 1 Division 1 Groups BCD
Specifications Linearity
Usually ±1.5% of full scale, depending on range and application
Specifications Method Of Detection
Single cell NDIR with no moving parts
Specifications Output Options
4-20 mA into 500 ohms non-isolated standard | Isolated 4-20 mA, RS232, RS485, serial outputs
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
High ranges - any from 0-40 to 0-100% CO | Standard ranges - 0-1.00, 2.00, 5.00, 10, 30% CO
Specifications Resolution
0.1% on most % ranges
Specifications Response Time T 90
Usually 20-30 seconds to 90% step change, depending on range and application
Specifications Size Weight
EX-PROOF: 61H x 33W x 31H cm (24"H x 13"W x 12"D) | NEMA 4: 51H x 41W x 26D cm (20"H x 16"W x 10"D)
Unique Applications 0
The FlexiNova 481 Series analyzers are designed for detection of CO in non-corrosive gas streams. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
