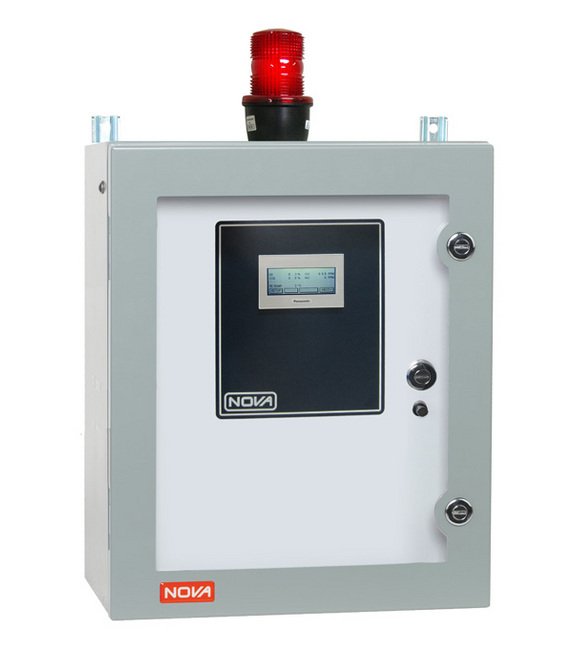

The Nova 510 Series oxygen deficiency or excess alarm monitors are designed as an O2 'watchdog' against accidental displacement of ambient air in a confined space by inert gases, or by a buildup of too much O2 from an O2 leak in the room. The monitors all utilize a long life electrochemical O2 sensor. Actual O2 concentration is shown on a digital meter on the front panel. Optional dual level alarm with local indication, relay contacts, and audible alert available. Alarm set points are pre-set at Nova but are field adjustable if desired. Flashing strobe light and upgraded cabinets also available.Models: 510D - Diffusion sensor, no pump and no moving parts; excellent for O2 monitoring in immediate local environment 510P - Pumped sample version; pump pulls air sample from wider area or from another isolated environment, such as from a closed room
Product Specifications
Applications 0
To monitor confined spaces, labs, control rooms, tunnels, oxygen plants, etc. for oxygen (O2) deficiency or excess.
Calibration 0
Although calibration of zero should not be necessary, it can be checked on nitrogen Analyzed gas or outside ambient air with 20.9% O2 for span
Features 0
Best value high accuracy O2 monitor Bright digital readout 4 to 5 year life electrochemical O2 sensor Available with pumped or diffusion-style sampling Easy to use and calibrate Fast response (T90 - 6 to 8 seconds) NEMA 12 dust tight enclosure 4-20mA recorder output
Options 0
Two levels of O2 alarm with local indication, relay contacts, and audible alarm with 'Acknowledge' button Low flow alarm on pumped sample models NEMA 4 weather-resistant enclosure Strobe light for alarm indication 510D - Diffusion sensor, no pump and no moving parts; excellent for O2 monitoring in immediate local environment 510P - Pumped sample version; pump pulls air sample from wider area or from another isolated environment, such as from a closed room
Specifications Accuracy Repeatability
± 2% of full scale
Specifications Alarms
Optional High and/or Low O2 alarm with SPDT contacts with 10A 115VAC rating
Specifications Ambient Temperature Range
40° to 104°F (5° to 40°C)
Specifications Analyzer Type
Ambient O2 analyzer
Specifications Area Rating
General Purpose Non-Hazardous only
Specifications Drift
Less than 1% of full scale per month
Specifications Linearity
±2% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical oxygen sensor
Specifications Output Options
4-20mA non-isolated
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-30% O2
Specifications Resolution
0.1% O2
Specifications Response Time T 90
6-8 seconds to 90% step change
Specifications Size Weight
20" H x 16" W x 10" D @ 20lbs. (51 x 41 x 26 cm @ 10kg)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
