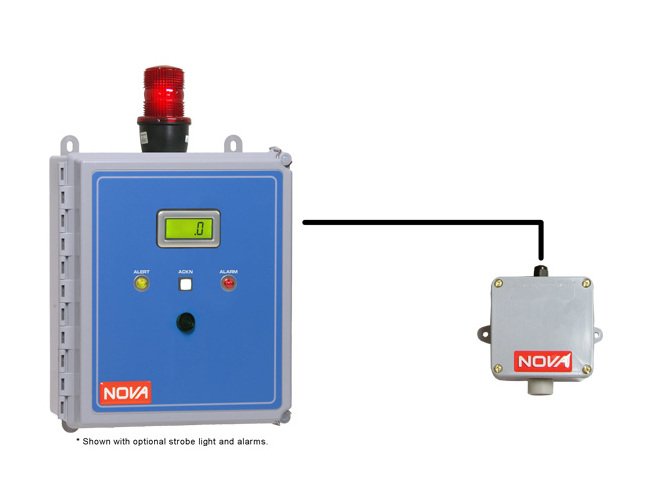

Model 560DR, Sulfur Dioxide Alarm Monitor, with remote sensor(s), Wall Mounted
Model 560DR, Sulfur Dioxide Alarm Monitor, with remote sensor(s), Wall Mounted
SKU:BYP-628e40
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 560DR, Sulfur Dioxide Alarm Monitor, with remote sensor(s), Wall Mounted
$49.99
Quantity: 1
Claim Your Seller Account
Model 560DR, Sulfur Dioxide Alarm Monitor, with remote sensor(s), Wall Mounted
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed to monitor ambient sulfur dioxide (SO2) near industrial processes, in confined spaces, or any other area where SO2 may be present. The Nova 560 Series Sulfur Dioxide (SO2) alarm monitors are designed for the continuous detection of SO2 in ambient air. The SO2 sensor is capable of excursions over 100 PPM with no damage. The SO2 sensor is of the disposable electrochemical type with an expected life of between 2-3 years. The sensor needs no warm up time and is ready to go as soon as the monitor is turned on.The 'DR' models are configured such that the chlorine sensor(s) are mounted outside of, and electrically connected to, the main cabinet (max distance between remote sensor & main cabinet - 50ft). This allows allows SO2 monitoring of single or multiple remote zones, with centralized display and alarming features. The remote sensors are the diffusion type, with no pump or moving parts. Optional dual level alarm with local indication, relay contacts, and audible alert available. Alarm set points are pre-set at Nova but are field adjustable if desired. Flashing strobe light and upgraded cabinets also available.Models: 560DR1 - Control cabinet with one remote diffusion sensor 560DR2 - Control cabinet with two remote diffusion sensors 560DR3 - Control cabinet with three remote diffusion sensors 560DR4 - Control cabinet with four remote diffusion sensors
Product Specifications
Applications 0
Designed to monitor ambient sulfur dioxide (SO2) near industrial processes, in confined spaces, or any other area where SO2 may be present.
Calibration 0
On N2 for zero Analyzed calibration gas of SO2 in N2 for span
Features 0
Standard electrochemical cell Fast response to the presence of SO2 in the air Instant warm-up, no wait Bright digital readout - no reading interpretation errors Easy use and calibrate Easy to maintain modular layout 4-20mA output signal for recording NEMA 12 fiberglass enclosure is standard
Options 0
'Fail Safe' alarms available Strobe light NEMA 4 enclosure
Specifications Accuracy Repeatability
±1% of full scale or 1 PPM, whichever is higher
Specifications Alarms
Optional - Dual high SO2 alarm light and relays (SPDT - 5A@ 230 VAC) | Optional: Audible alarm with 'Acknowledge' button
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
Wall-mounted Ambient Air Monitor
Specifications Area Rating
General Purpose Non-Hazardous only
Specifications Drift
Less than 1% of full scale or 2 PPM per week, whichever is greater
Specifications Linearity
±1% of full scale or 1 PPM, which ever is higher
Specifications Method Of Detection
Disposable electrochemical cell
Specifications Output Options
4-20 mA
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-20 PPM standard
Specifications Resolution
1 PPM
Specifications Response Time T 90
Less than 15 seconds to 90% step change
Specifications Size Weight
20" H x 16" W x 10" D @ 20lbs. (51 x 41 x 26 cm @ 10kg)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
