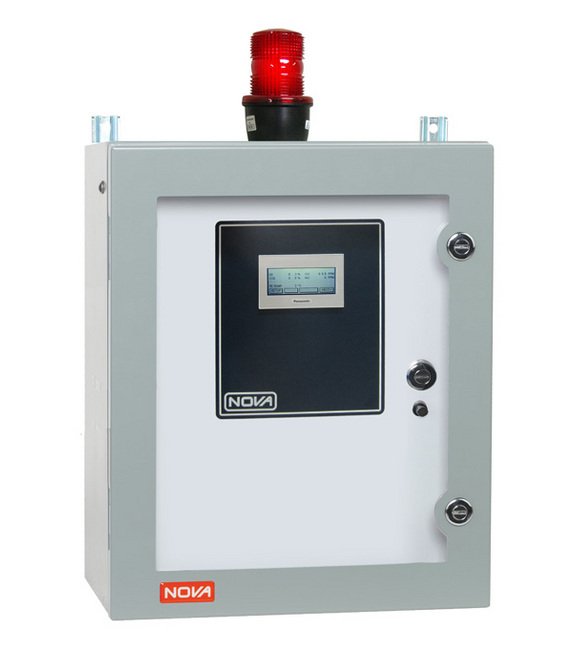

The Nova 560 Series Sulfur Dioxide (SO2) alarm monitors are designed for the continuous detection of SO2 in ambient air. The SO2 sensor is capable of excursions over 100 PPM with no damage. The SO2 sensor is of the disposable electrochemical type with an expected life of between 2-3 years. The sensor needs no warm up time and is ready to go as soon as the monitor is turned on. Two versions are available as shown below. Models: 560D - Diffusion sensor, no pump and no moving parts; excellent for monitoring in immediate local environment 560P - Pumped sample version; pump pulls air sample from wider area or from another isolated environment, such as from a closed room
Product Specifications
Applications 0
Designed to monitor ambient sulfur dioxide (SO2) near industrial processes, in confined spaces, or any other area where SO2 may be present.
Calibration 0
On N2 for zero Analyzed calibration gas of SO2 in N2 for span
Features 0
Fast response to the presence of SO2 Instant warm up, no wait Bright digital readout Easy to use and calibrate Modular layout that is easy to maintain 4-20mA output signal for recording NEMA 12 dust-tight enclosure
Options 0
Low flow alarm on pumped sample models NEMA 4 weather-proof enclosures Alarm with relay contact and 'Sonalert' audible alarm with 'Acknowledge' button Bright red strobe light for visible alarming
Specifications Accuracy Repeatability
Better than ±1% of full scale
Specifications Ambient Temperature Range
40 to 104°F (4 to 40°C)
Specifications Analyzer Type
Wall-mounted Ambient Air Monitor
Specifications Area Rating
General Purpose Non-Hazardous only
Specifications Drift
Less than 1% of full scale per week
Specifications Linearity
±1% of full scale
Specifications Method Of Detection
Customer replaceable electrochemical SO2 sensor
Specifications Output Options
4-20 mA
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-20 PPM standard
Specifications Resolution
1 PPM
Specifications Response Time T 90
Less than 60 seconds to 90% step change
Specifications Size Weight
20" H x 16" W x 10" D @ 20lbs. (51 x 41 x 26 cm @ 10kg)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. However, the 560 Series is not suitable for many process or flue gas applications. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
