Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

BYI-4cd283

N/A

$49.99
$49.99
Sale

Initiate Order

Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

$49.99

Quantity: 1

Claim Your Seller Account

Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

Model 580BA, Carbon Monoxide Alarm Monitor, Breathing Air Monitor for Compressed Air Lines with Pressure Regulator and a Special 0-50 PPM Low Range CO Sensor

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

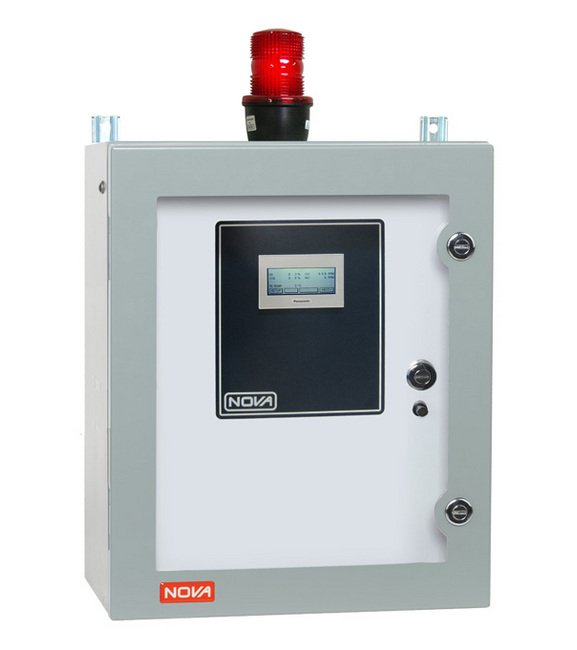

The Nova 580 Series carbon monoxide (CO) alarm monitors are designed for the continuous detection of CO in air. The CO sensor is of the disposable electrochemical type with an expected life of between 3-4 years. The sensor needs no warm up time and is ready to go as soon as the monitor is turned on.Optional dual level alarm with local indication, relay contacts, and audible alert available. Alarm set points are pre-set at Nova but are field adjustable if desired. Flashing strobe light and upgraded cabinets also available.Models: 580BA - Supplied Breathing Air Monitor for compressed air lines with pressure regulator and a special 0-50 PPM low range CO sensor

Product Specifications

Applications 0
Designed to monitor carbon monoxide (CO) in underground parking garages, service garages, around steel making furnaces, breathing air, or any other area where CO may be present.
Features 0
Fast response to the presence of CO Instant warm up, no wait Bright digital readout Easy use and calibrate Modular layout that is easy to maintain 4-20mA output non-isolated NEMA 12 dust-tight enclosure
Options 0
Low range version for breathing air supplies CO alarm with relay contact and 'Sonalert' Audible alarm with 'Acknowledge' button Low flow alarm NEMA 4 weather-proof enclosure Bright red strobe light for visible alarming
Specifications Accuracy Repeatability
Better than 1% of full scale
Specifications Alarms
Dual high CO alarm light and relays (SPDT - 5A@ 230 VAC) | Low flow alarm available on Models 580BA | Strobe light and/or large audible alarm horn available
Specifications Ambient Temperature Range
40° to 104°F (5° to 40°C)
Specifications Analyzer Type
Ambient CO analyzer
Specifications Area Rating
General Purpose Non-Hazardous only
Specifications Drift
Less than 1% of full scale per week
Specifications Linearity
± 1% of full scale
Specifications Method Of Detection
Electrochemical CO sensor
Specifications Output Options
4-20 mA
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-50ppm CO (lower than standard range for supplied breathing air applications)
Specifications Resolution
1 PPM CO
Specifications Response Time T 90
Less than 15 seconds to 90% step change
Specifications Size Weight
20" H x 16" W x 10" D @ 20lbs. (51 x 41 x 26 cm @ 10kg)
Unique Applications 0
The 580 Series is not suitable for process or flue gas CO analysis. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
