Model 580DR, Carbon Monoxide Alarm Monitor, with remote sensor(s), Wall Mounted
Model 580DR, Carbon Monoxide Alarm Monitor, with remote sensor(s), Wall Mounted
SKU:BYI-b5b24f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Model 580DR, Carbon Monoxide Alarm Monitor, with remote sensor(s), Wall Mounted
$49.99
Quantity: 1
Claim Your Seller Account
Model 580DR, Carbon Monoxide Alarm Monitor, with remote sensor(s), Wall Mounted
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

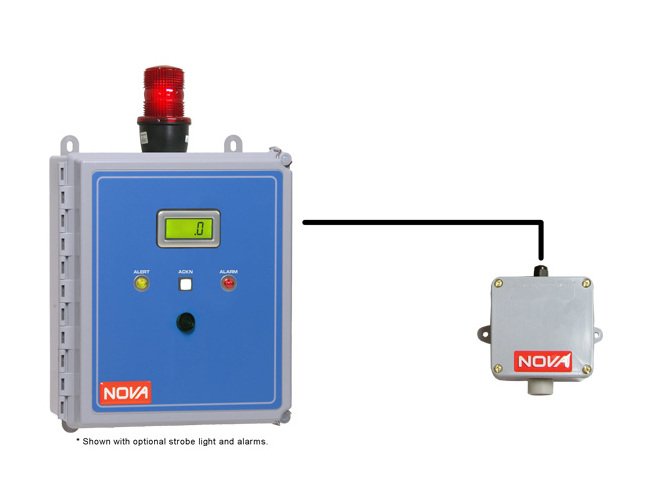

The Nova 580 Series Carbon Monoxide (CO) alarm monitors are designed for the continuous detection of CO in ambient air. The CO sensor is capable of excursions over 1000 PPM with no damage. The CO sensor is of the disposable electrochemical type with an expected life of between 3-4 years. The sensor needs no warm up time and is ready to go as soon as the monitor is turned on.The 'DR' models are configured such that the chlorine sensor(s) are mounted outside of, and electrically connected to, the main cabinet (max distance between remote sensor & main cabinet - 50ft). This allows allows CO monitoring of single or multiple remote zones, with centralized display and alarming features. The remote sensors are the diffusion type, with no pump or moving parts.Optional dual level alarm with local indication, relay contacts, and audible alert available. Alarm set points are pre-set at Nova but are field adjustable if desired. Flashing strobe light and upgraded cabinets also available.Models: 580DR1 - one diffusion sensor remote from main cabinet 580DR2 - two remote diffusion sensors 580DR3 - three remote diffusion sensors 580DR4 - four remote diffusion sensors
Product Specifications
Applications 0
Designed to monitor carbon monoxide (CO) in underground parking garages, service garages, around steel making furnaces, breathing air, or any other area where CO may be present.
Features 0
Fast response to the presence of CO Instant warm up, no wait Bright digital readout Easy use and calibrate Modular layout that is easy to maintain 4-20mA output non-isolated NEMA 12 dust-tight enclosure
Options 0
Low range version for breathing air supplies CO alarm with relay contact and 'Sonalert' Audible alarm with 'Acknowledge' button Low flow alarm NEMA 4 weather-proof enclosure Bright red strobe light for visible alarming
Specifications Accuracy Repeatability
Better than 1% of full scale
Specifications Alarms
Audible alarm with 'Acknowledge' button | Dual high CO alarm light and relays (SPDT - 5A@ 230 VAC) | Strobe light and/or large audible alarm horn available
Specifications Ambient Temperature Range
40° to 104°F (5° to 40°C)
Specifications Analyzer Type
Ambient CO analyzer
Specifications Area Rating
General Purpose Non-Hazardous only
Specifications Drift
Less than 1% of full scale per week
Specifications Linearity
± 1% of full scale
Specifications Method Of Detection
Electrochemical CO sensor
Specifications Output Options
4-20mA non-isolated
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-200 PPM standard on all models, except 580BA which has a 0-50 PPM sensor
Specifications Resolution
1 PPM CO
Specifications Response Time T 90
Less than 15 seconds to 90% step change
Specifications Size Weight
20" H x 16" W x 10" D @ 20lbs. (51 x 41 x 26 cm @ 10kg)
Unique Applications 0
The 580 Series is not suitable for process or flue gas CO analysis. All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova at 1-800-295-3771. In many cases, we are able to build an analyzer specific to your needs.
