Model A1 Heavy Duty Air Winches - 2000 lbs. Capacity
Model A1 Heavy Duty Air Winches - 2000 lbs. Capacity
SKU:RIG-51ac41
Heavy-duty Model A1 Winches - 2000 lbs. Capacity, Ideal for Lifting/Pulling
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Model A1 Heavy Duty Air Winches - 2000 lbs. Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Model A1 Heavy Duty Air Winches - 2000 lbs. Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

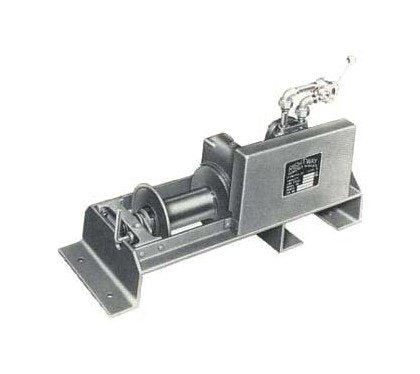

The Model A1 Heavy Duty Air Winches are designed for heavy-duty lifting and pulling tasks, offering a running capacity of 2000 lbs. With a line speed of 30 FPM and a 5/16 inches wire rope size, these winches ensure efficient and reliable performance. Featuring a self-locking worm gear reduction system with oilbath lubrication, they are built for all-weather use and are ideal for rugged applications. The winches come with standard features like a free spooling drum, all steel fabricated winch base for maximum durability, and a minimum 5 to 1 structural safety factor, making them a dependable choice for demanding industrial operations.
Product Specifications
Specifications Air Requirement
70 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
120 ft.
Specifications Full Drum
285 ft.
Specifications Line Speed
30 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
265 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
2000
Specifications Winch Height
28 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Free spooling drum for easy playing out of cable Self-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E1 and A1 winches All steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
