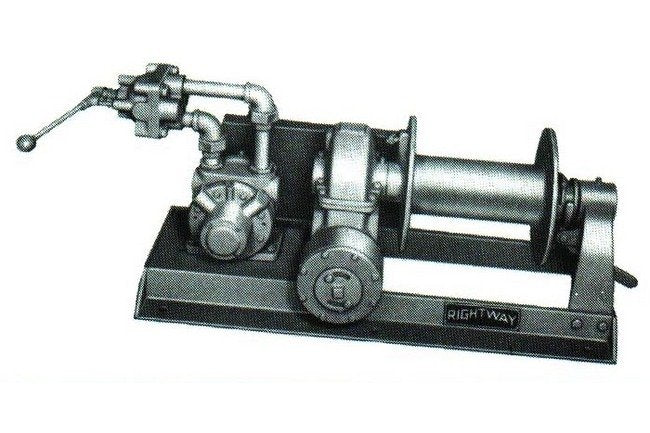

The Model A2 Heavy Duty Air Winch by Rightway Winches is built for robust performance in all weather conditions. Featuring a self-locking worm gear reduction system with oil bath lubrication, this winch ensures reliable operation and durability. The automatic mechanical load safety brake provides added security during lifting and pulling operations. With a 5 to 1 structural safety factor, the all-steel fabricated winch base guarantees maximum strength. Ideal for industrial applications, this winch meets the stringent requirements of government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Requirement
100 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
250 ft.
Specifications Full Drum
800 ft.
Specifications Line Speed
50 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
405 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
1500
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
