Model E1 Electric Heavy Duty Winch - 3000 lbs
Model E1 Electric Heavy Duty Winch - 3000 lbs
SKU:RIG-cb8174
Reliable Model E1 Electric Heavy Duty Winch - 3000 lbs, with self-locking worm gear, 5 HP motor, and precision sealed roller bearings for all-weather use.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Model E1 Electric Heavy Duty Winch - 3000 lbs
$2,899.99
Quantity: 1
Claim Your Seller Account
Model E1 Electric Heavy Duty Winch - 3000 lbs
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

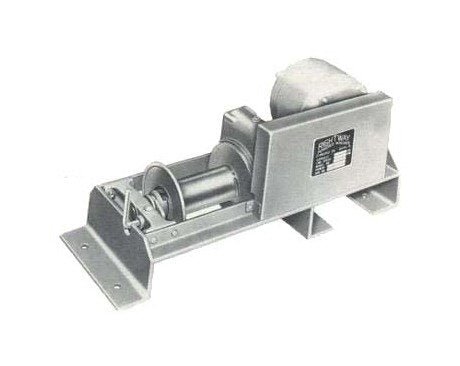

The Model E1 Electric Heavy Duty Winch is a robust solution designed for superior performance in various mounting positions - ceiling, wall, or floor. With self-locking worm gear reduction and precision sealed roller bearings, this winch ensures reliable operation in all weather conditions. Boasting a 5 HP motor and a 5 to 1 structural safety factor, it offers a running capacity of 3000 lbs and a line speed of 25 FPM. Ideal for lifting and pulling applications, this winch comes with optional equipment like Electric Motor Brake and Mechanical Torque Limiter for enhanced safety and control.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
110 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
200 ft.
Specifications Line Speed
25 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
275 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
3000
Specifications Winch Height
16 inches
Specifications Winch Length
37 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
