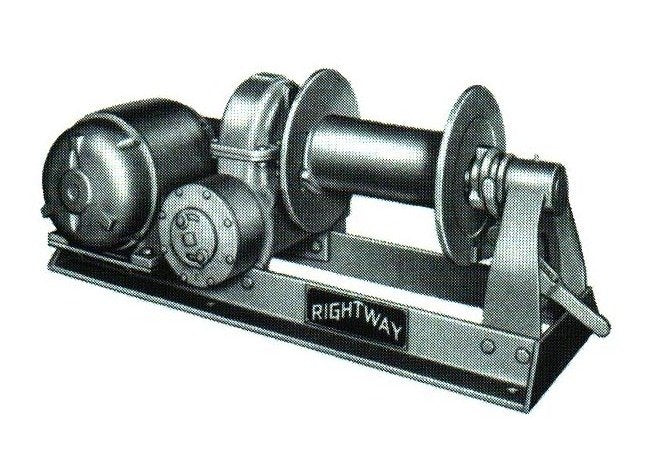

Model E2 Electric Heavy Duty Winches - 7500 lbs
Model E2 Electric Heavy Duty Winches - 7500 lbs
SKU:RIG-8e790c
Powerful 7500 lbs Electric Winch for heavy-duty lifting and pulling tasks. Self-locking worm gear, safety brake, durable all-weather design.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Model E2 Electric Heavy Duty Winches - 7500 lbs
$3,499.99
Quantity: 1
Claim Your Seller Account
Model E2 Electric Heavy Duty Winches - 7500 lbs
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E2 Electric Heavy Duty Winch is a powerhouse designed for reliability and durability in demanding environments. With a running capacity of 7500 lbs and a 9/16-inch wire rope, this winch is equipped for heavy-duty lifting and pulling tasks. The self-locking worm gear reduction with oil bath lubrication ensures smooth operation, while the safety brake provides automatic mechanical load control. The all-weather design and all-steel fabricated winch base guarantee maximum durability with a minimum 5 to 1 structural safety factor. Optional features include controls tailored to your application, an electric motor brake for hoisting applications, a mechanical torque limiter, and a cable drum pressure roller for multiple layer reeving. Whether for lifting or pulling, this winch is a reliable partner for your toughest jobs.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
300 ft.
Specifications Line Speed
15 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
810 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
7500
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
