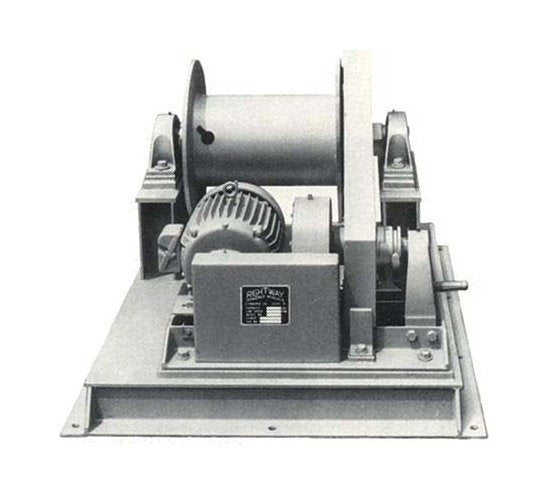

Model E5 Heavy Duty Electric Winch
Model E5 Heavy Duty Electric Winch
SKU:RIG-be053a
Powerful 20 HP electric winch with 25000 lbs. capacity, ideal for heavy industrial use.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Model E5 Heavy Duty Electric Winch
$5,899.99
Quantity: 1
Claim Your Seller Account
Model E5 Heavy Duty Electric Winch
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E5 Heavy Duty Electric Winch is a powerhouse built for industrial applications, featuring a 20 HP motor, a capacity of 25000 lbs., and a wire rope capacity of 750 ft. Its triple reduction self-locking gearing and heavy-duty roller bearing assemblies ensure reliable performance. This winch, with a 5 to 1 structural safety factor, is designed for lifting, pulling, and precise control. Optional equipment includes overspeed automatic load holding brake, torque limiter mechanical clutch, and cable drum pressure roller for enhanced functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
25000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
20 inches
Specifications Full Drum
750 ft.
Specifications Line Speed
15 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
8500 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
56 inches
Specifications Winch Length
91 inches
Specifications Winch Width
71 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
425 ft.
Specifications Wire Rope Size
1 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
