Model E5 Industrial Pullers - Heavy Duty Electric Winch
Model E5 Industrial Pullers - Heavy Duty Electric Winch
SKU:RIG-d93df5
Powerful Model E5 Industrial Pullers for heavy-duty lifting and pulling tasks
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Model E5 Industrial Pullers - Heavy Duty Electric Winch
$8,999.99
Quantity: 1
Claim Your Seller Account
Model E5 Industrial Pullers - Heavy Duty Electric Winch
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

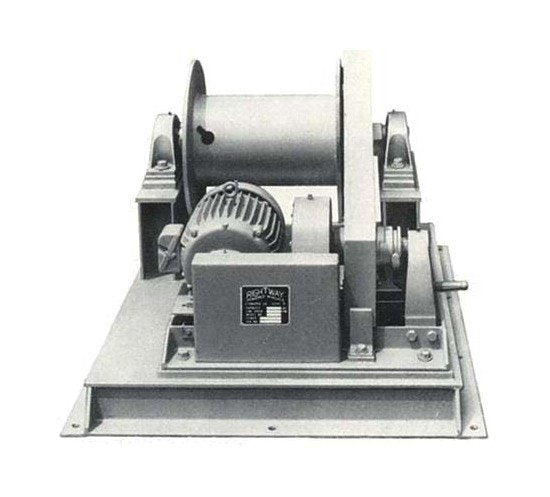

The Model E5 Heavy Duty Industrial Pullers are powerhouse winches designed for demanding applications. Featuring a robust construction with a totally enclosed high torque motor, triple reduction self-locking gearing, and heavy-duty roller bearings, these pullers excel in both crane and hoist duties. With a minimum 5:1 structural safety factor and large diameter drums that increase wire rope life, the Model E5 ensures reliability and durability in any weather condition. Ideal for lifting and pulling operations, this winch is equipped with essential features like overspeed automatic load holding drum brake, free spooling drum, torque limiter mechanical clutch, and cable drum pressure roller for enhanced functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
14 inches
Specifications Full Drum
900 ft.
Specifications Line Speed
30 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
3625 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
43 inches
Specifications Winch Length
71 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
