Model R Electric Winches - Heavy Duty 1000 lbs Capacity
Model R Electric Winches - Heavy Duty 1000 lbs Capacity
SKU:RIG-00b917
Heavy-duty Model R Electric Winches for precision lifting and pulling applications. 1000 lbs Capacity, 50 FPM Line Speed.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Model R Electric Winches - Heavy Duty 1000 lbs Capacity
$1,899.99
Quantity: 1
Claim Your Seller Account
Model R Electric Winches - Heavy Duty 1000 lbs Capacity
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

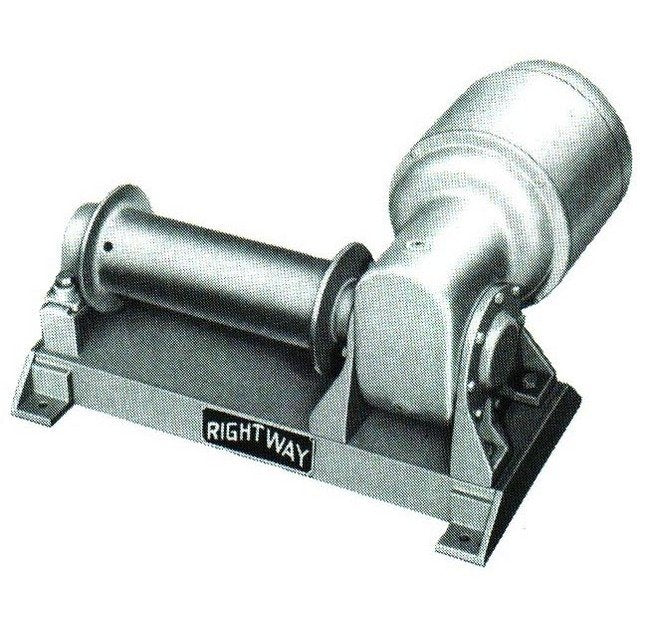

The Model R Electric Winches are designed for heavy-duty lifting and pulling applications, offering a running capacity of 1000 lbs and a line speed of 50 FPM. With a 2 HP motor and precision sealed roller bearings, these winches ensure reliable performance in any weather conditions. The self-locking worm gear reduction and oil bath lubrication provide added durability, while the optional equipment like electric brake, slack line limit switch, and travel limit switch enhance safety and control. Ideal for industrial settings, these winches are built with a minimum 5 to 1 structural safety factor, meeting the rigorous demands of continuous use.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Electrical Current
220/440 V-3-60
Specifications Full Drum
245 ft.
Specifications Line Speed
50 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
200 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
1000
Specifications Winch Height
15 inches
Specifications Winch Length
24 inches
Specifications Winch Width
23 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
